Product Overview
Applications
Used for connecting PROFIBUS stations to the PROFIBUS bus cable.
Technical Summary
| Product type | PROFIBUS connector |
|---|---|
| Product description | PROFIBUS bus connector, RS 485, screw, with programming port, 90° |
| Transfer rate / with PROFIBUS DP | 9.6 kbit/s … 12 Mbit/s |
| Electrical connections for PROFIBUS cables | 2 |
| Electrical connection for network components or terminal equipment | 1 9-pin sub D connector |

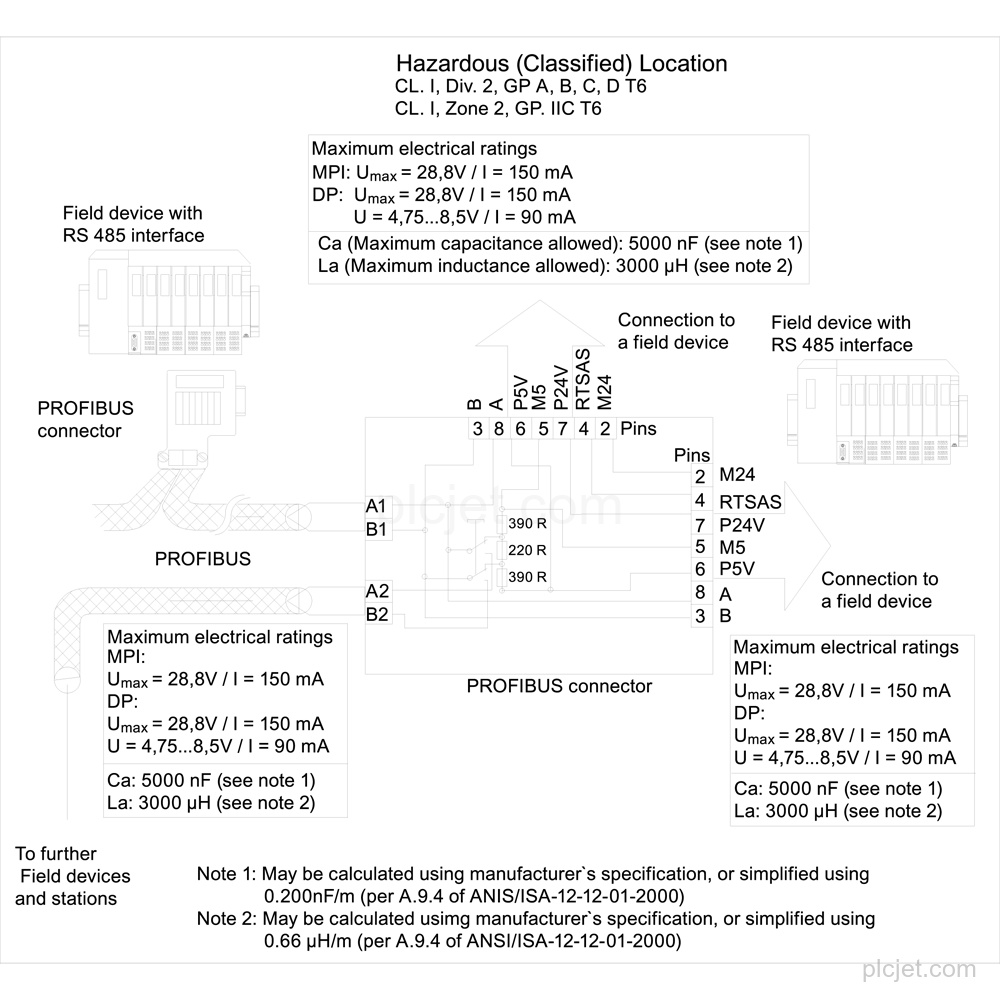

| Terminating resistor | Resistor combination integrated and connectable via slide switch |
| Protection class | IP20 |
Key Features
Connects PROFIBUS stations to the PROFIBUS bus cable and supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
Provides 2 screw connections for PROFIBUS cables and 1 9-pin sub D connector for network components or terminal equipment.
The resistor combination is integrated and connectable via slide switch.
The connector has a 90 degree cable outlet and a screwed joint locking mechanism.

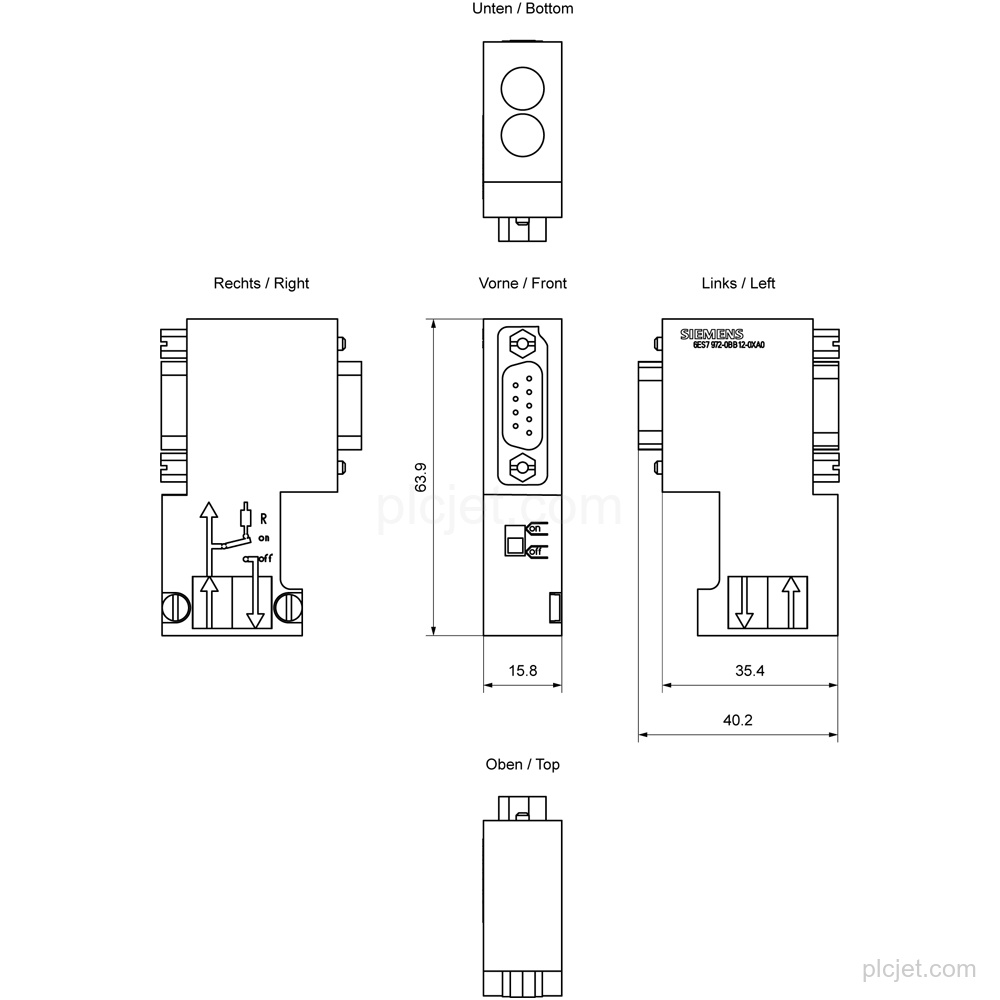

Dimensions are 15.8 mm × 64 mm × 35.6 mm (W × H × D), with a net weight of 45 g.
Protection class IP20; PG connection socket and strain relief are included, and the product is silicon-free.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7972-0BB12-0XA0?
It is a SIMATIC PROFIBUS bus connector with RS 485 screw connection, programming port and 90° cable outlet.
What transfer rate does this PROFIBUS connector support?
The transfer rate is 9.6 kbit/s … 12 Mbit/s with PROFIBUS DP.
What configuration does the connector have?
It has 2 screw connections for PROFIBUS cables, 1 9-pin sub D connector for network components or terminal equipment, and an integrated connectable terminating resistor.
