Product Overview
Applications
Used for connecting PROFIBUS stations to the PROFIBUS bus cable.
Technical Summary
| Product type | PROFIBUS connector |
|---|---|
| Transfer rate | 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP |
| Connections for PROFIBUS cables | 2 screw connections |
| Connection for network components or terminal equipment | 1 9-pin sub D connector |
| Cable outlet | 35° cable outlet |
| Protection class | IP20 |
| Ambient temperature during operation | -25 … +60 °C |
Key Features
Supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
Provides 2 screw connections for PROFIBUS cables and 1 9-pin sub D connector for network components or terminal equipment.

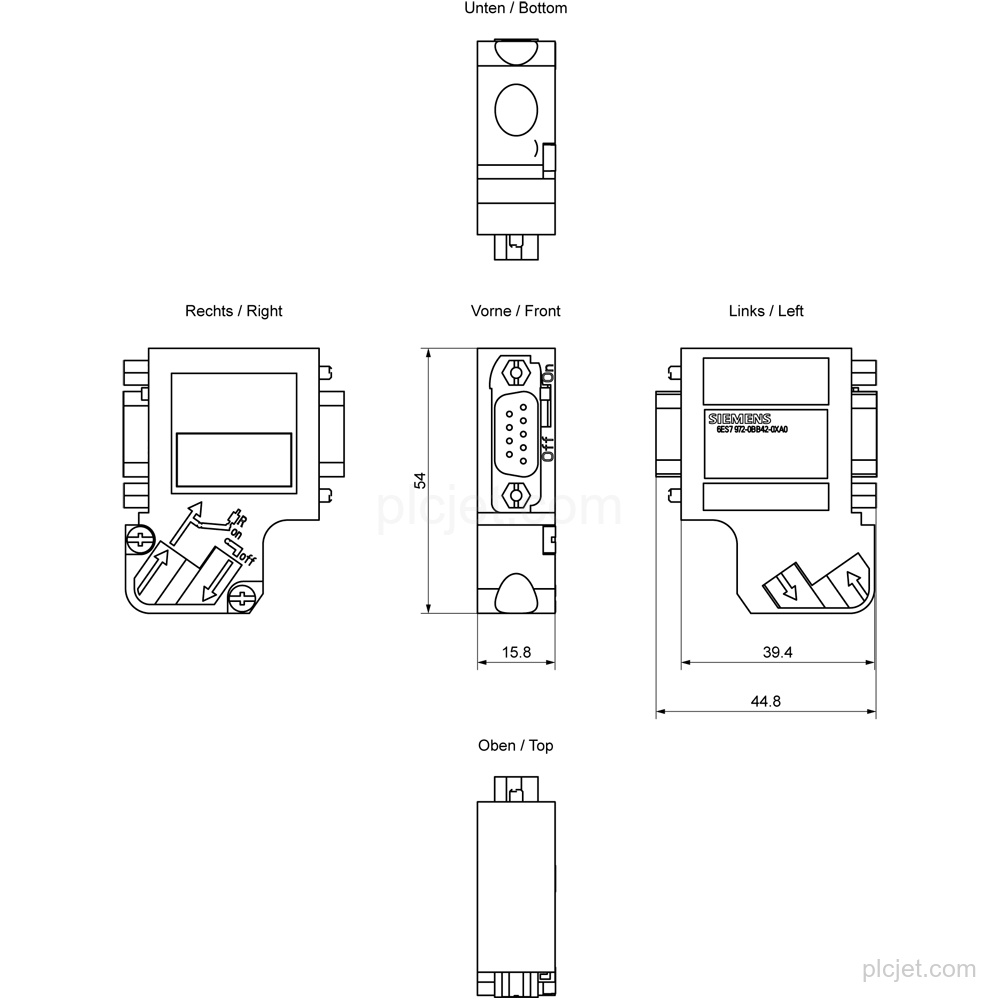

Has a 35° cable outlet and measures 15.8 mm wide, 54 mm high, and 39.5 mm deep.

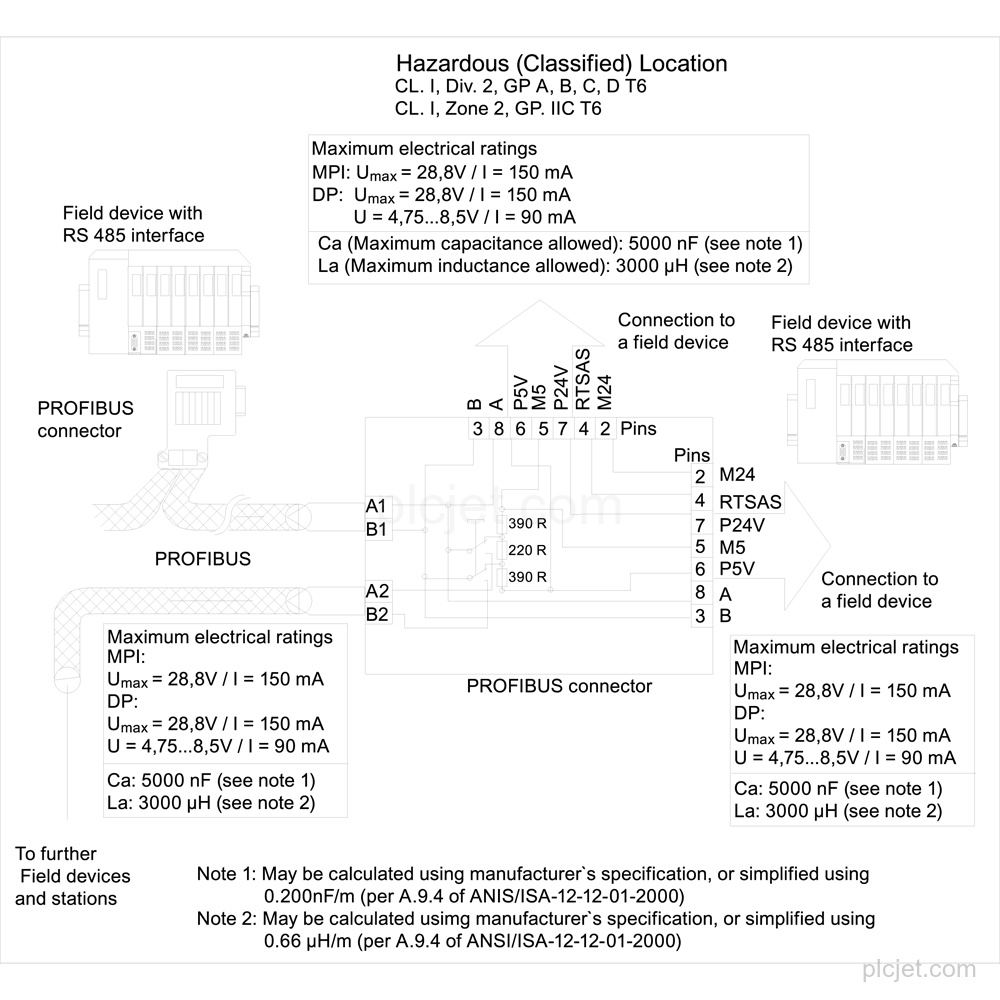

The resistor combination is integrated and connectable via a slide switch.
Includes a PG connection socket and strain relief; FastConnect is not included.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7972-0BB42-0XA0?
It is a PROFIBUS bus connector, RS 485, with a screw connection, programming port, and 35° cable outlet.
What transfer rate does this PROFIBUS connector support?
It supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
What connections are provided?
It has 2 screw connections for PROFIBUS cables and 1 9-pin sub D connector for network components or terminal equipment.
Does the configuration include FastConnect?
It is without FastConnect.
What should be included when requesting this line item for a project quotation?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
