Product Overview
Applications
The outputs can control a digital input.
Technical Summary
| Product lifecycle | Active Product |
|---|---|
| Digital I/O | 16 digital inputs and 16 digital outputs, parameterizable as DIQ |
| Input voltage | 24 V DC; signal "0": -3 to +5 V; signal "1": +11 to +30 V |
| Output switching capacity | 0.5 A / 2 A |
| Load voltage | 1L+ and 2L+: 24 V DC rated; 20.4 V to 28.8 V permissible range |
| PROFINET interface | 1 interface; 100 Mbit/s full duplex; 2 M12 ports, 4-pin, D-coded |
| Supported protocols | PROFINET IO, EtherNet/IP, Modbus TCP |
| Configuration | STEP 7 V17 or higher with HSP 0363 |
| Protection | IP65/67/69K |
| Firmware version | V5.1.x |
Key Features

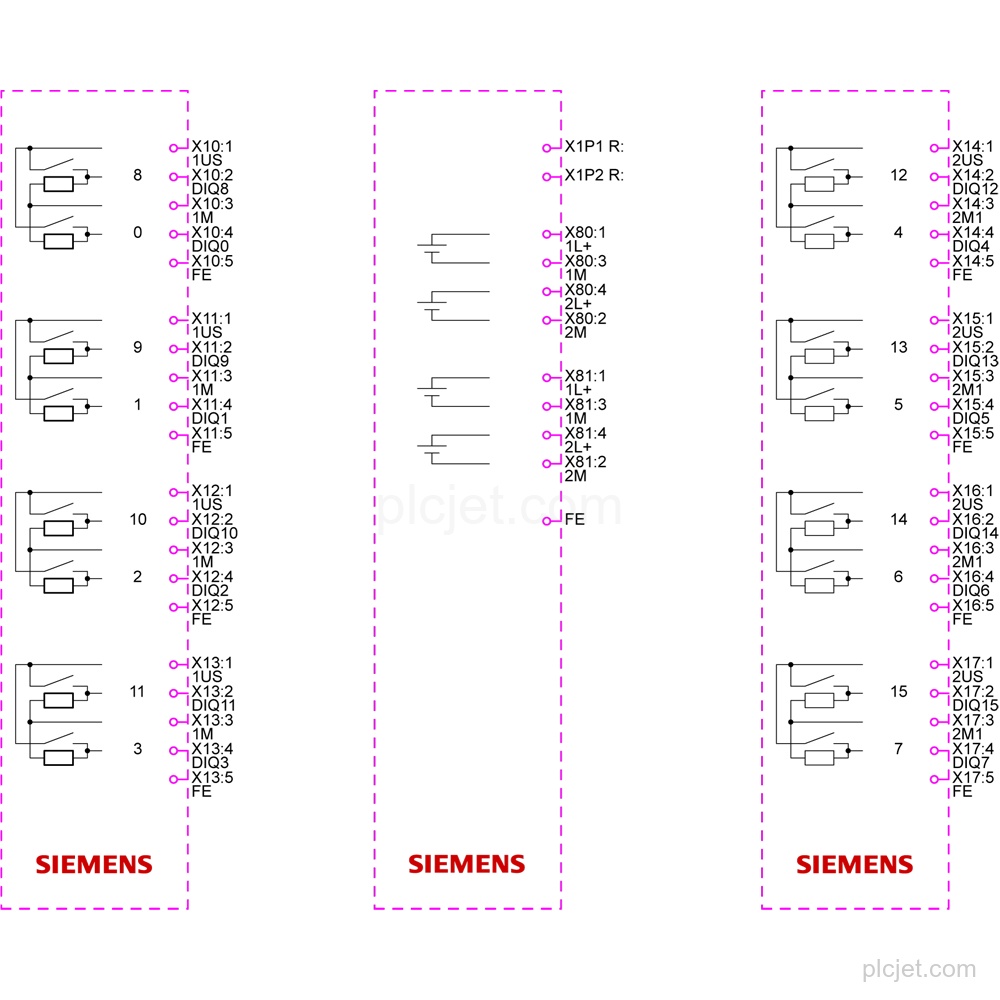

16 digital inputs and 16 digital outputs, parameterizable as DIQ; inputs and outputs are arranged in groups of 8.
Load voltage 1L+ and 2L+ have a rated value of 24 V DC with a permissible range of 20.4 V to 28.8 V.
Outputs support 0.5 A / 2 A switching capacity and electronic short-circuit protection per channel.
1 PROFINET interface with 100 Mbit/s full duplex, 2 M12, 4-pin, D-coded ports and an integrated switch.
Supports PROFINET IO, EtherNet/IP and Modbus TCP; STEP 7 V17 or higher with HSP 0363 is required for configuration.

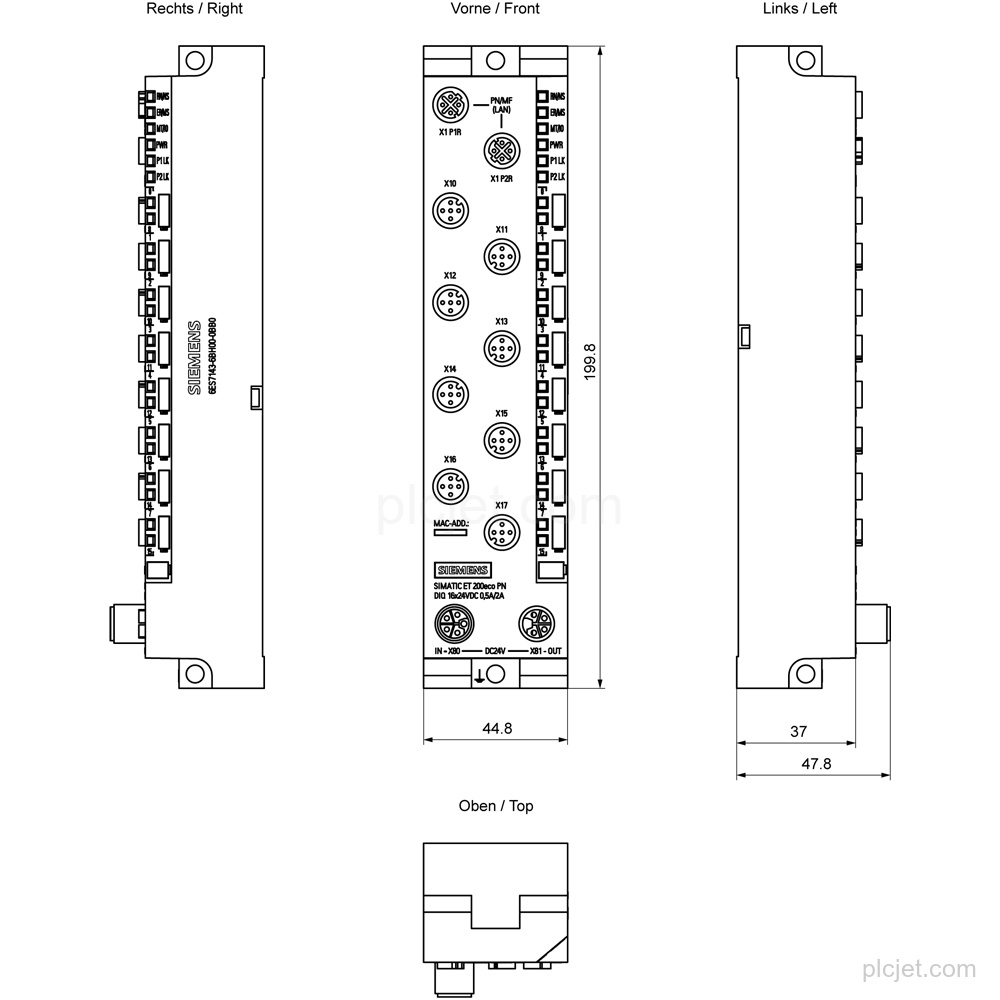

M12-L connection with 8x M12; degree of protection is IP65/67/69K.
Frequently Asked Questions
What is the exact Siemens line item?

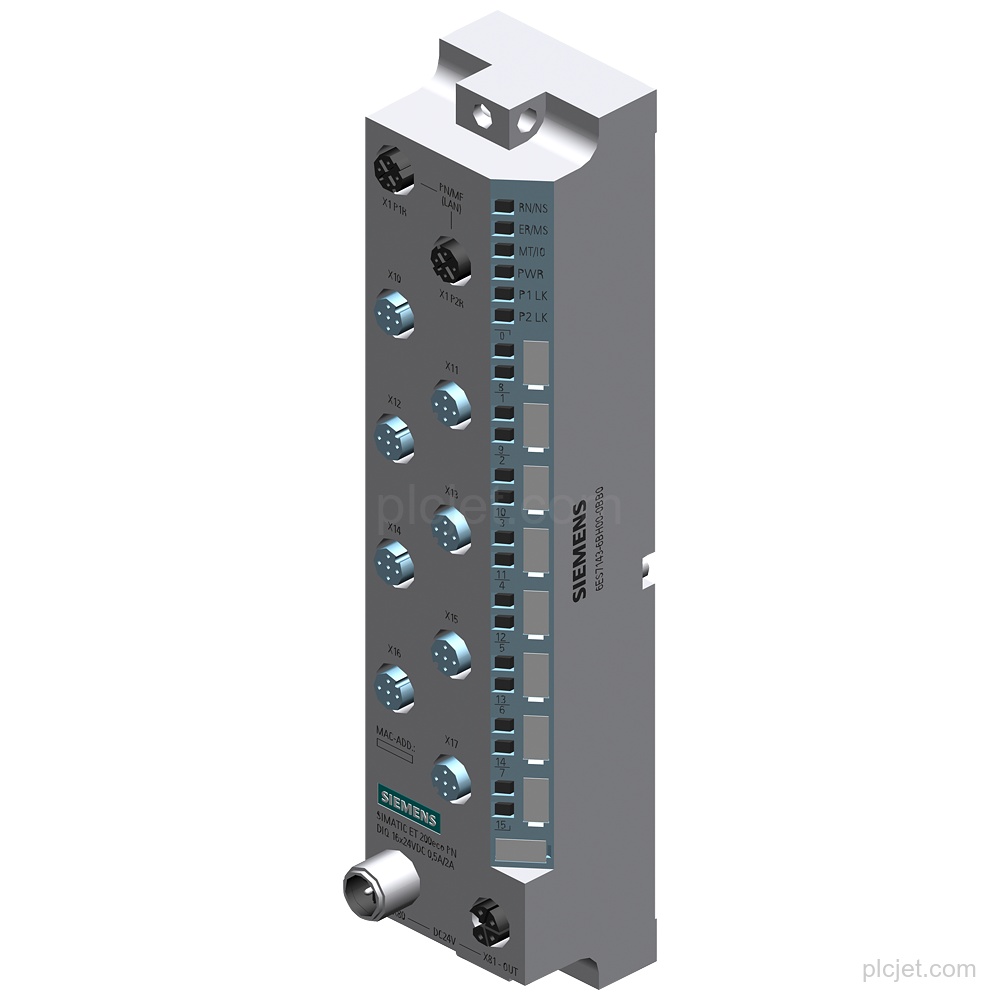

It is Siemens 6ES7143-6BH00-0BB0, SIMATIC ET 200eco PN.
How many DIQ channels does the module have?
It has 16 digital inputs and 16 digital outputs, parameterizable as DIQ, in groups of 8.
What supply voltage does it use?
Load voltage 1L+ and 2L+ have a rated value of 24 V DC, with a permissible range of 20.4 V to 28.8 V.
Which network interfaces and protocols are supported?
It has 1 PROFINET interface with 2 M12 ports and supports PROFINET IO, EtherNet/IP and Modbus TCP.
What configuration details should accompany a quotation request?
Provide the requested quantity, destination, schedule context and any additional BOM lines.
