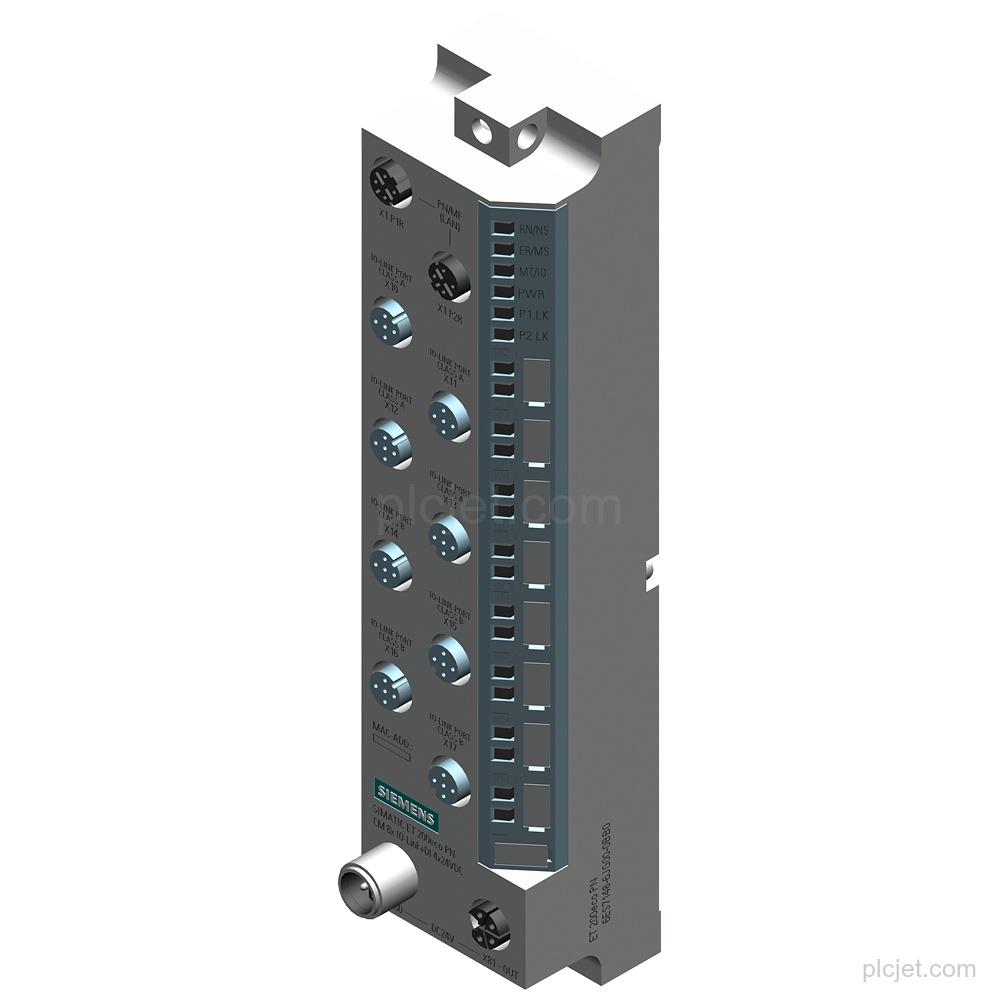

Product Overview
Applications

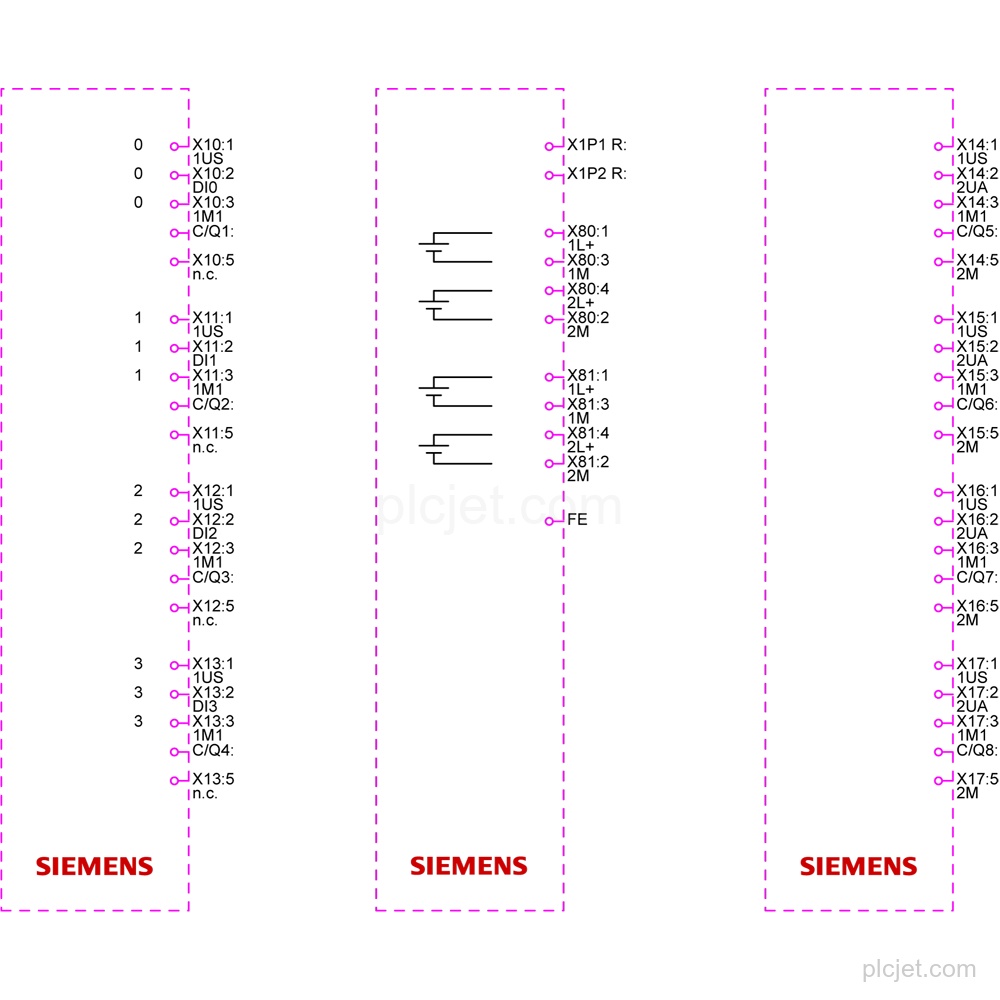

Connects IO-Link devices through 8 IO-Link ports, including Port type A via a 3-core cable and Port type B with additional device supply.
Technical Summary
| Product identity | 6ES7148-6JG00-0BB0; SIMATIC ET 200eco PN |
|---|---|
| IO-Link capacity | 8 ports; 8 simultaneously controllable |
| Digital inputs | 4 |
| PROFINET interface | 1; 100 Mbit/s full duplex (100BASE-TX) |
| Additional protocols | EtherNet/IP; Modbus TCP |
| Shared device capacity | Up to 2 IO Controllers |
| Load voltage | 24 V DC rated; 20.4 V to 28.8 V permissible range for 1L+ and 2L+ |

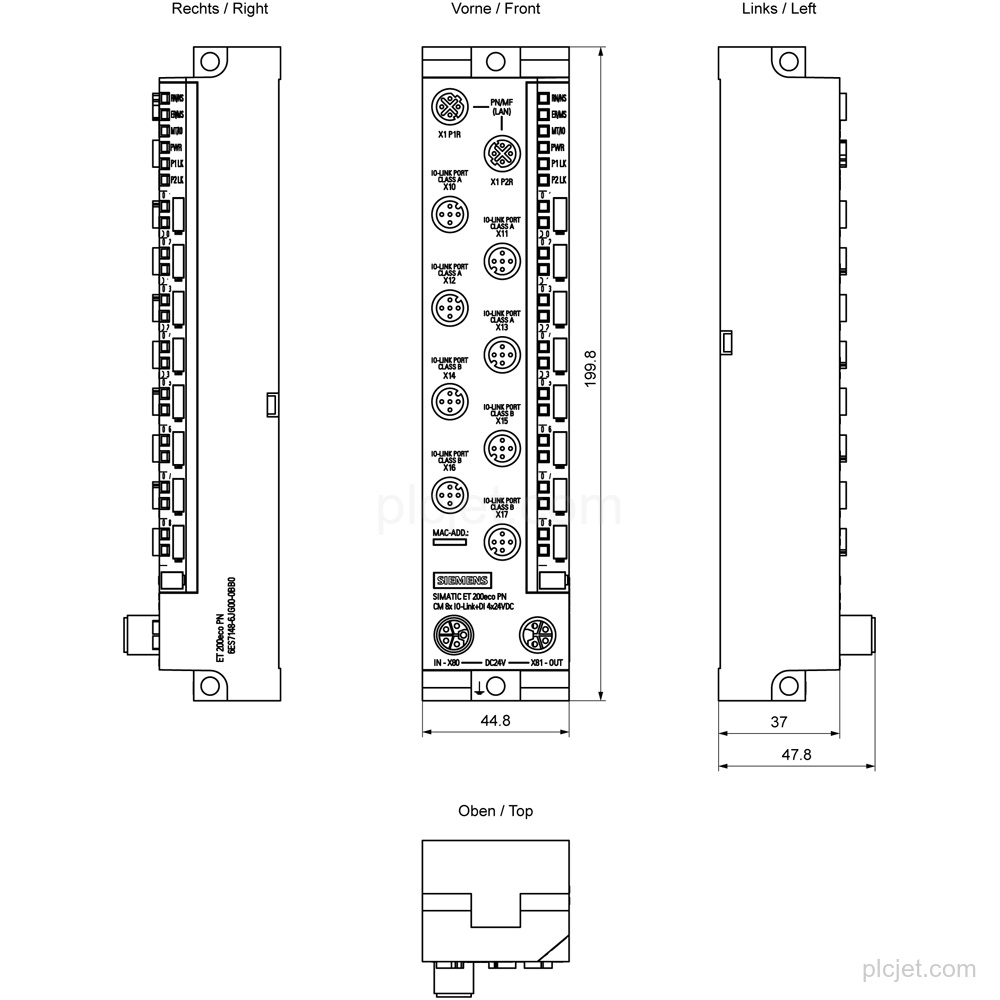

| M12 interfaces | 2x M12, 4-pin, D-coded; integrated switch |
| Protection | IP65/67/69K |
| Firmware version | V5.2.x |
| Engineering | STEP 7 V17 or higher with HSP 0363; GSDML V2.4.x |
Key Features
Has 8 IO-Link ports, all simultaneously controllable, plus 4 digital inputs. DQ mode is supported with a maximum of 100 mA.
Supports PROFINET IO Device, EtherNet/IP, and Modbus TCP. It has 1 PROFINET interface and 2 M12, 4-pin, D-coded ports with an integrated switch.
Supports a shared device with up to 2 IO Controllers, PROFINET system redundancy (S2), MRP, and prioritized startup.
Load voltages 1L+ and 2L+ have a rated value of 24 V DC and a permissible range of 20.4 V to 28.8 V.
Provides channel diagnostics, diagnostic and maintenance alarms, supply-voltage monitoring, wire-break detection, and short-circuit protection for encoder supply per channel. Protection is IP65/67/69K.
Supports STEP 7 V17 or higher with HSP 0363, GSDML V2.4.x, MFCT from V1.3 SP1, and firmware updates.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6ES7148-6JG00-0BB0, a SIMATIC ET 200eco PN IO-Link master.
How many IO-Link ports and digital inputs does it have?
It has 8 IO-Link ports, all simultaneously controllable, and 4 digital inputs.
Which communication protocols are supported?
It supports PROFINET IO Device, EtherNet/IP, and Modbus TCP.
What supply voltage range is supported?
The rated load voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V for load voltages 1L+ and 2L+.
What details should be included for a project quotation?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
