Product Overview
Technical Summary
| Product type | TP700 Comfort |
|---|---|
| Display | 7 in TFT widescreen, 800 pixel × 480 pixel, 16 777 216 colors |
| Touch screen | Analog-resistive |
| Configuration memory | 12 MB |
| Configuration software | WinCC Comfort V11 |
| Industrial Ethernet | 1 interface; 2 ports (switch) |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| USB interfaces | 2; USB 2.0 |

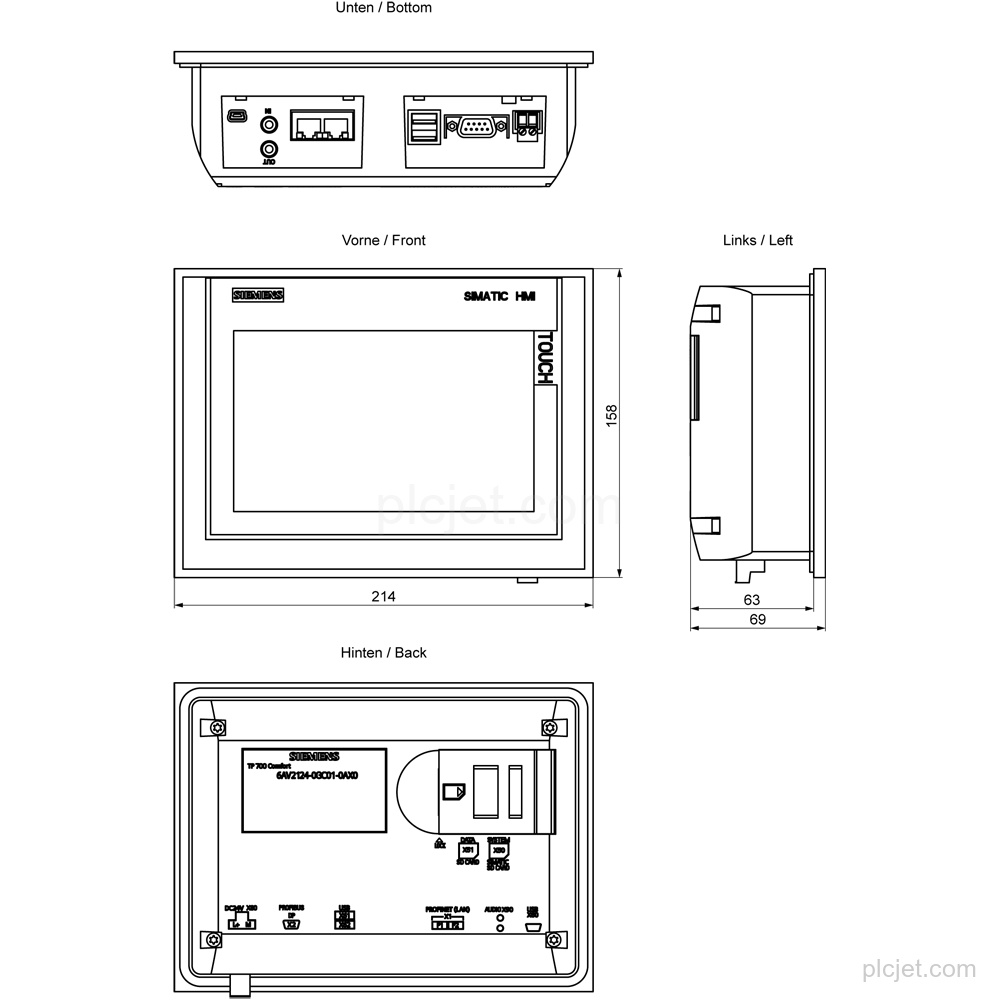

| Mounting | Vertical; portrait and landscape mounting possible |
| Protection | IP65 at the front; IP20 at the rear |
| Product lifecycle | Announcement of product phase-out |
Key Features
The TFT display has a 7 in diagonal, 800 pixel horizontal resolution, 480 pixel vertical resolution and 16 777 216 colors.
The panel has an analog-resistive touch screen with numeric and alphanumeric onscreen keyboards.

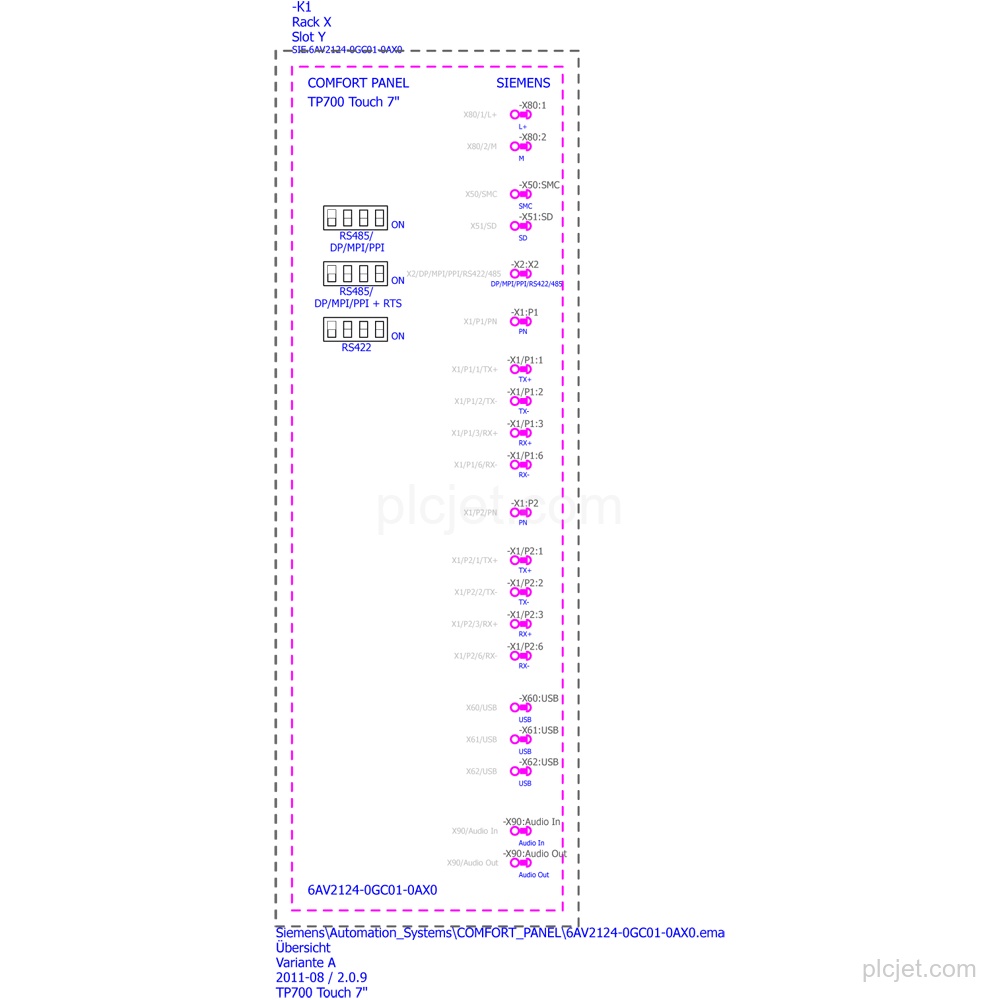

Interfaces include 1 industrial Ethernet interface with 2 switch ports, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces and 2 SD card slots.
The panel supports PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP and LLDP.
Supply is 24 V DC with a permissible range of 19.2 V to 28.8 V. Mounting is vertical, with portrait and landscape mounting possible.
The front has IP65 protection and Enclosure Type 4 and 4x.
Frequently Asked Questions
What is the exact HMI model?
It is the SIMATIC HMI TP700 Comfort, order number 6AV2124-0GC01-0AX0.
What display and touch configuration does it have?
It has a 7 in widescreen TFT display with 800 pixel × 480 pixel resolution, 16 777 216 colors and an analog-resistive touch screen.
Which communication interfaces are included?
It has 1 industrial Ethernet interface with 2 switch ports, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces and 2 SD card slots.
What supply voltage is required?
Supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
What should be included in a project quotation request?
Provide the requested quantity, destination, schedule context and any additional BOM lines.
