Product Overview
Technical Summary
| Product type | TP900 Comfort |
|---|---|
| Display | 9 in widescreen TFT |
| Touch screen | Yes; Analog-resistive |
| Resolution | 800 pixel × 480 pixel |
| Configuration memory | 12 MB |
| Supply | 24 V DC; permissible range from 19.2 V to 28.8 V |
| Industrial Ethernet | 1; 2 ports (switch) |
| USB | 2; USB 2.0 |

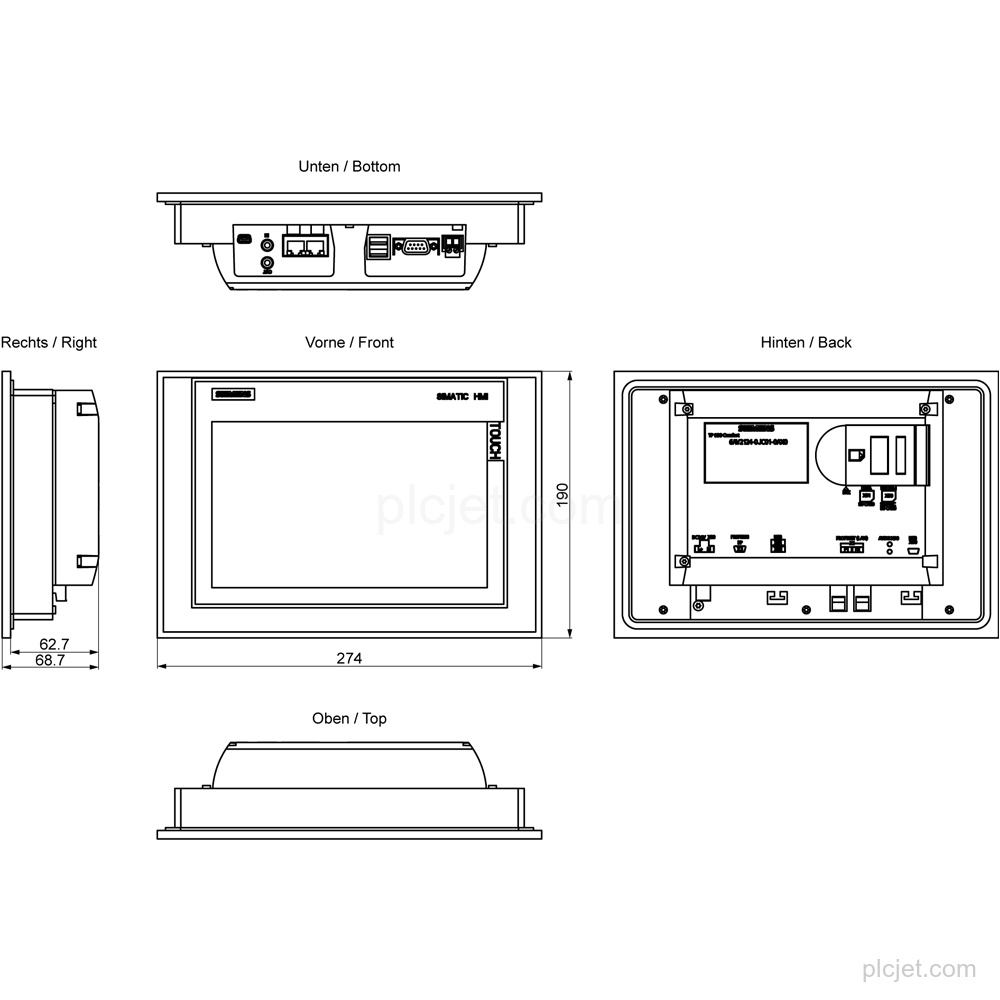

| Mounting | Vertical; portrait and landscape formats possible |
| Front protection | IP65 |
| Configuration software | WinCC Comfort V11 |
Key Features
9 in TFT display with 16 777 216 colors and 800 pixel × 480 pixel resolution.
Analog-resistive touch screen with numeric and alphanumeric onscreen keyboards.

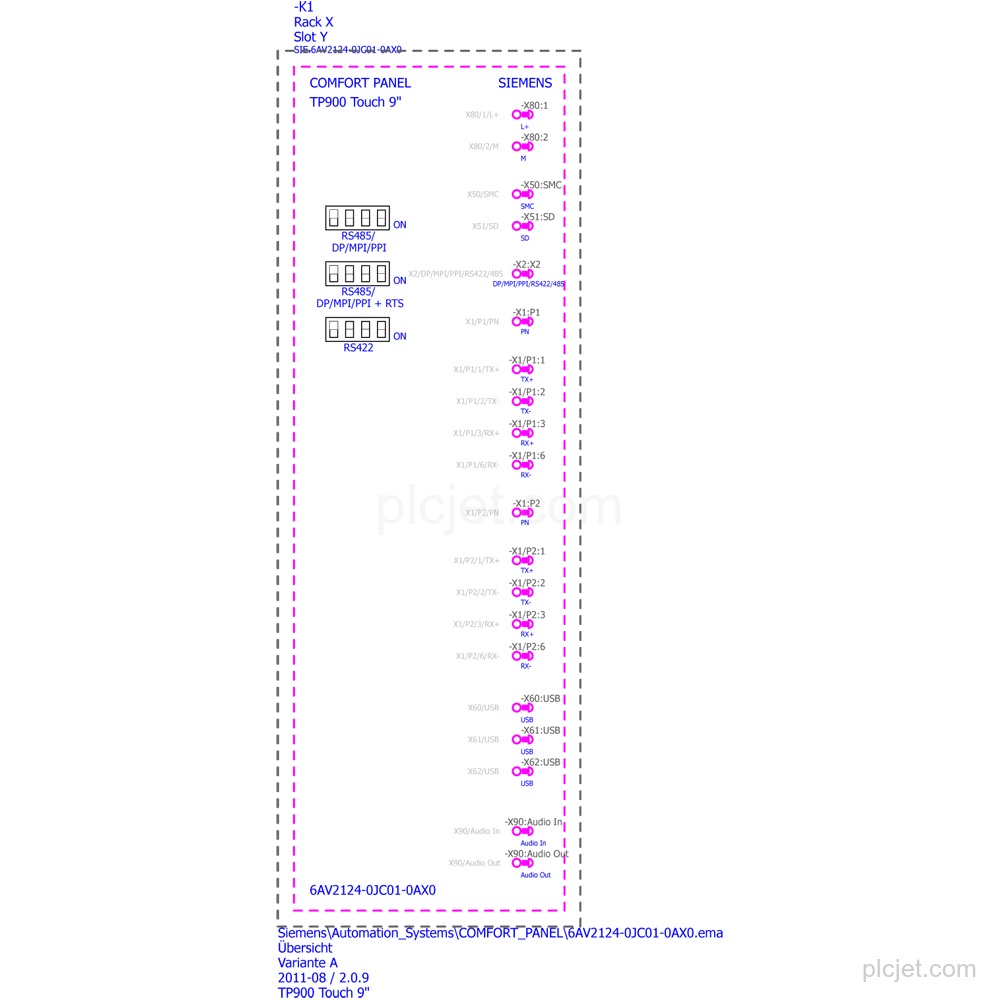

1 industrial Ethernet interface with 2 ports (switch), 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces and 2 SD card slots.
PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP and LLDP are supported.
24 V DC rated supply value; permissible range from 19.2 V to 28.8 V. Vertical mounting is supported, with portrait and landscape mounting possible.
12 MB configuration memory, Windows CE 6.0 and configuration from WinCC Comfort V11. Product lifecycle: Announcement of product phase-out.
Frequently Asked Questions
What exact Siemens line item is this?
It is 6AV2124-0JC01-0AX0, SIMATIC HMI TP900 Comfort.
Which display and touch configuration does it have?
It has a 9 in widescreen TFT display, 16 777 216 colors, 800 pixel × 480 pixel resolution and an analog-resistive touch screen.
Which interfaces and protocols are supported?
It has industrial Ethernet with 2 switch ports, combined RS 422 / 485, 2 USB 2.0 interfaces and 2 SD card slots. Supported protocols include PROFINET, PROFIBUS, EtherNet/IP and MPI.
How is the panel mounted and protected?
Mounting is vertical, with portrait and landscape formats possible. Protection is IP65 at the front and IP20 at the rear.
