Product Overview
Technical Summary
| Product type designation | TP1200 Comfort |
|---|---|
| Display | 12.1 in TFT, 16 777 216 colors |
| Resolution | 1 280 pixel horizontal × 800 pixel vertical |
| Touch operation | Analog-resistive |
| Configuration memory | 12 MB |
| Industrial Ethernet | 1; 2 ports (switch) |
| USB interfaces | 2; USB 2.0 |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Mounting | Vertical; portrait and landscape possible |
| Protection | IP65 at the front; IP20 at the rear |
| Product lifecycle | Announcement of product phase-out |
Key Features
12.1 in TFT display with 1 280 pixel horizontal resolution, 800 pixel vertical resolution, 16 777 216 colors, and analog-resistive touch operation.

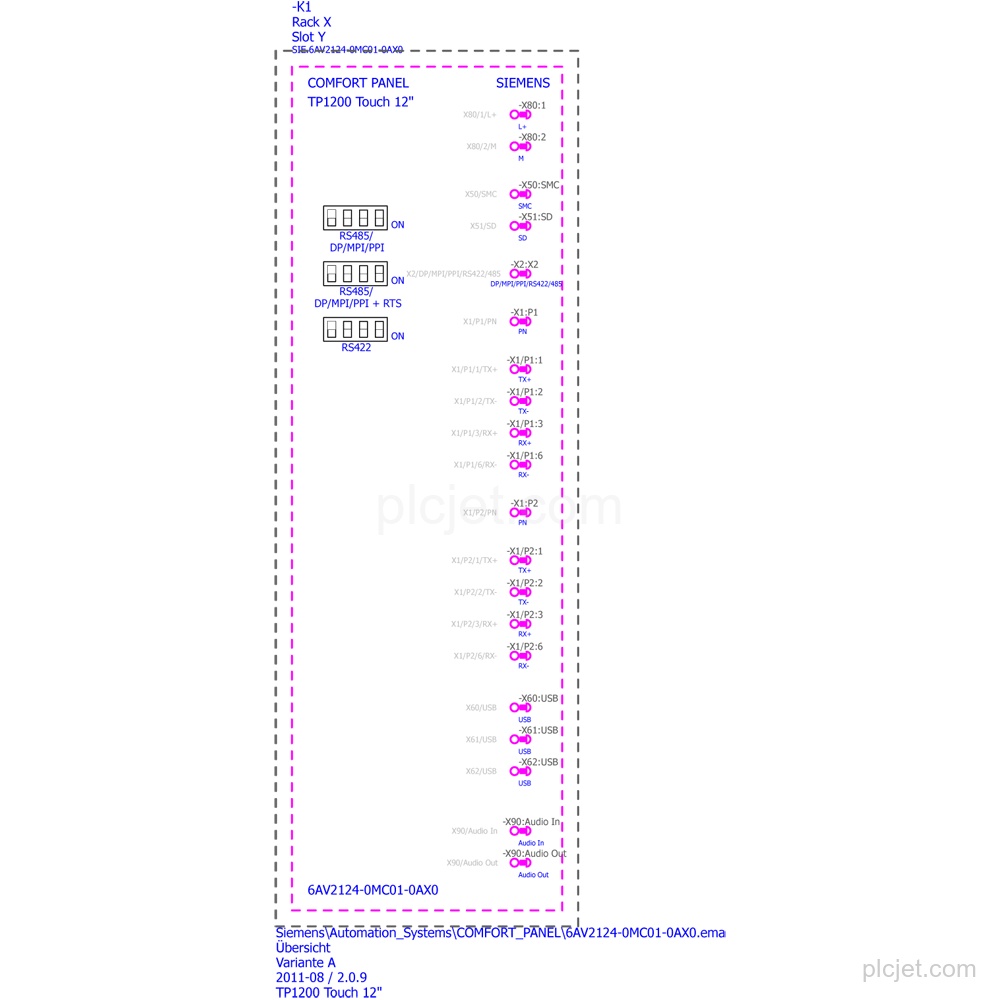

1 industrial Ethernet interface with 2 ports (switch), 1 RS 422 / 485 combined interface, 2 USB 2.0 interfaces, and 2 SD card slots.
Supports PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, Active X, and JavaScript.
12 MB configuration memory; configurable from WinCC Comfort V11; Windows CE 6.0 and X86 processor.
24 V DC rated supply value, permissible range 19.2 V to 28.8 V, current consumption 0.85 A, and typical active power input 20 W.

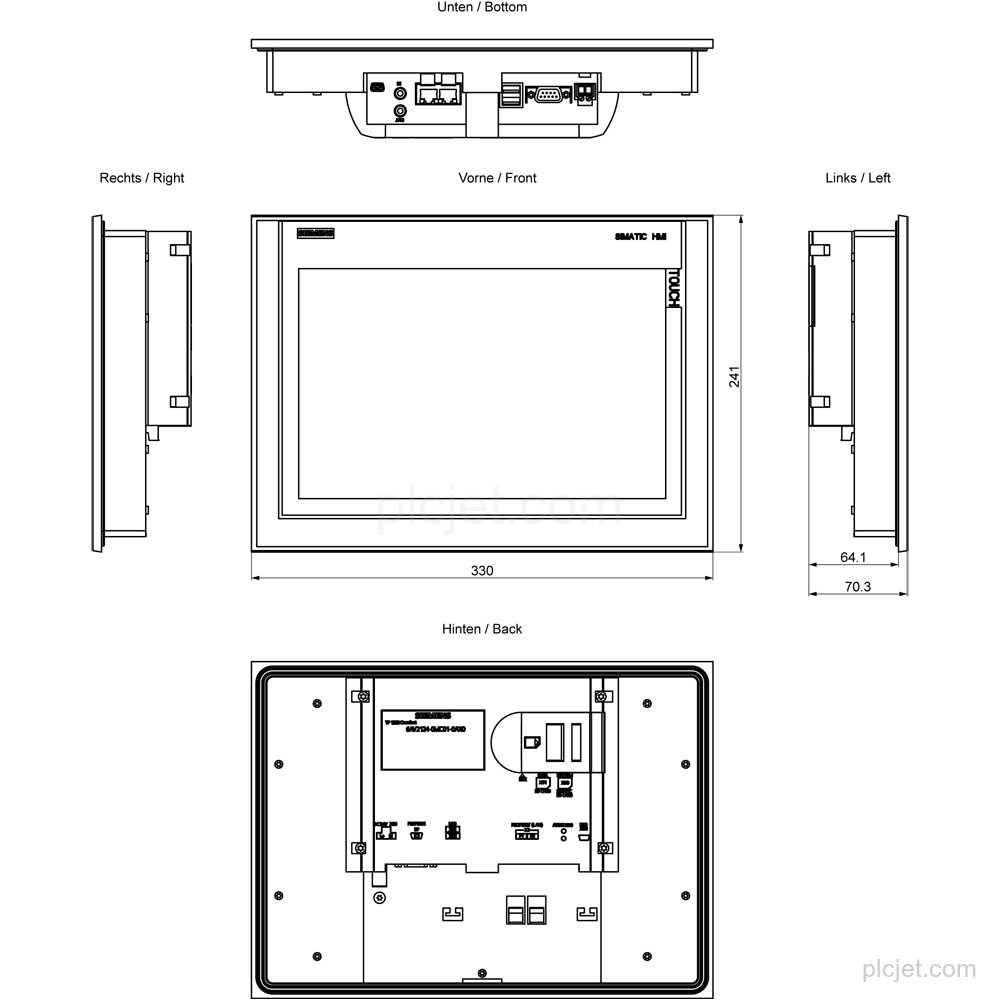

Vertical mounting position; portrait and landscape mounting possible; maximum permissible angle of inclination without external ventilation: 35°; IP65 at the front and IP20 at the rear.
Frequently Asked Questions
What is the exact Siemens line item?
It is the Siemens 6AV2124-0MC01-0AX0, product type TP1200 Comfort.
Which display and touch configuration does it have?
It has a 12.1 in TFT display with 1 280 pixel × 800 pixel resolution, 16 777 216 colors, and analog-resistive touch operation.
Which interfaces and protocols are supported?
It has PROFINET, MPI/PROFIBUS DP, 1 industrial Ethernet interface with 2 ports (switch), 1 RS 422 / 485 combined interface, 2 USB 2.0 interfaces, and 2 SD card slots.
What supply range and mounting details should be retained in the quotation?
The supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Mounting is vertical, with portrait and landscape mounting possible; the maximum permissible angle of inclination without external ventilation is 35°.
