Product Overview
Technical Summary
| Product type | SIMATIC HMI TP1200 Comfort PRO |
|---|---|
| Mounting | Support arm; vertical |
| Display | 12.1 in widescreen TFT, 1 280 pixel × 800 pixel, 16 777 216 colors |
| Touch operation | Projective-capacitive touch screen |

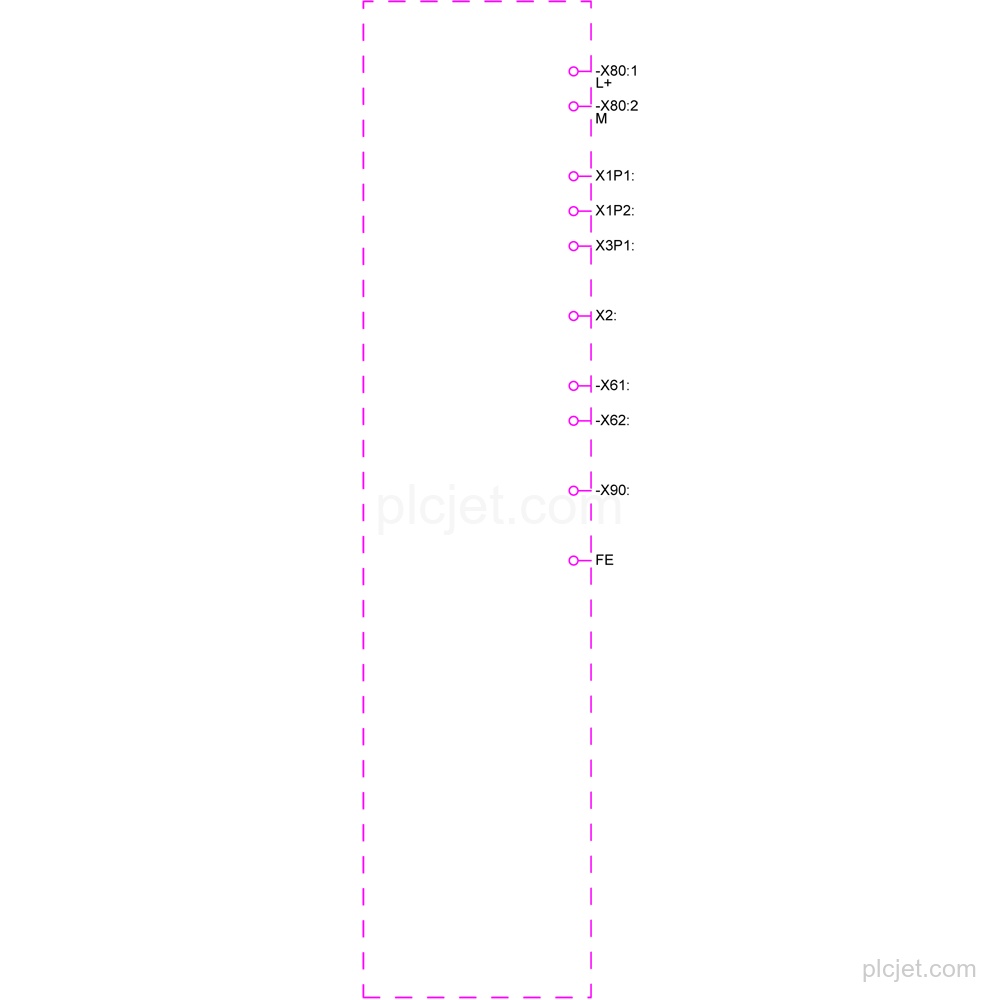

| Interfaces | 2 industrial Ethernet; 1 combined RS 422 / 485; 2 USB 2.0; 2 SD card slots |
| Protocols | PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, MODBUS |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Power input | 36 W, typical |
| Configuration memory | 24 MB |
| User data memory | 12 Mbyte |
| Protection | IP65 at the front and rear; Enclosure Type 4 and Type 4x at the front |
Key Features
Support-arm mounting with a top flange, vertical mounting position, neutral front, and no expansion capability.
12.1 in widescreen TFT display with 1 280 pixel × 800 pixel resolution and 16 777 216 colors; projective-capacitive touch screen.
2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots.
Supports PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, and MODBUS.
DC supply with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V; typical active power input is 36 W.
Has 24 MB configuration memory, 12 Mbyte memory available for user data, and the product lifecycle status Announcement of product phase-out.
Frequently Asked Questions
What is the exact product variant?
It is SIMATIC HMI TP1200 Comfort PRO, order number 6AV2124-0MC24-0AB0.
How is this HMI panel mounted?
It uses support-arm mounting with a top flange and vertical mounting position. Portrait-format mounting is not possible.
Which display and touch specifications apply?
The panel has a 12.1 in widescreen TFT display with 1 280 pixel × 800 pixel resolution, 16 777 216 colors, and a projective-capacitive touch screen.
Which interfaces and protocols are available?
It has industrial Ethernet, combined RS 422 / 485, USB 2.0, and SD card interfaces. Supported protocols include PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, and MODBUS.
Is the panel expandable?
It is without expansion capability.
