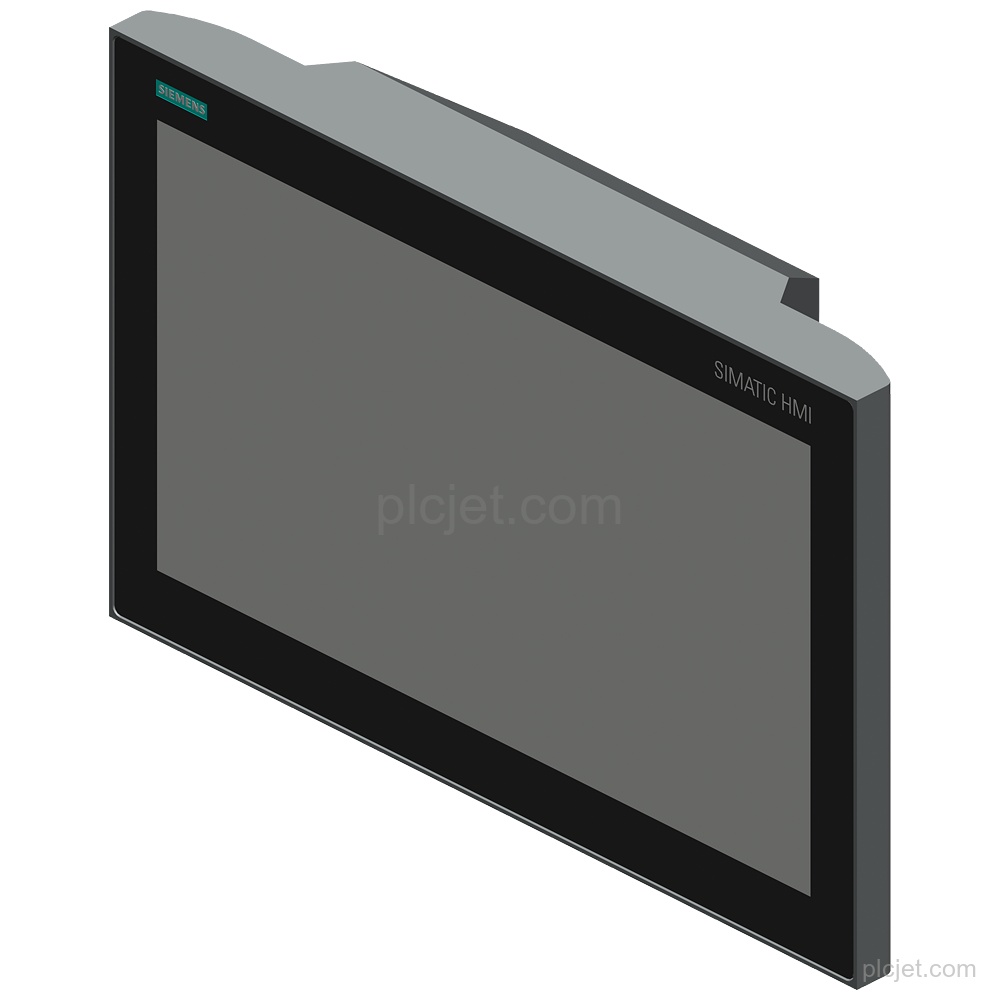

Product Overview
Technical Summary
| Product type | TP1500 Comfort PRO |
|---|---|
| Display | 15.6 in TFT widescreen, 16 777 216 colors |
| Resolution | 1 366 x 768 pixel |
| Mounting | Support arm, vertical |
| Touch operation | Projective-capacitive touch screen |
| Interfaces | 2 industrial Ethernet; 1 RS 422 / 485; 2 USB 2.0; 2 SD card slots |
| Supply | 24 V DC; 19.2 V to 28.8 V permissible range |
| User data memory | 24 Mbyte |
| Configuration memory | 24 MB |
| Protection | IP65 at the front and rear |
| Software | WEC 2013; configurable as of WinCC Comfort V14 SP1 with HSP |
Key Features
15.6 in TFT widescreen display with 16 777 216 colors and 1 366 x 768 pixel resolution.

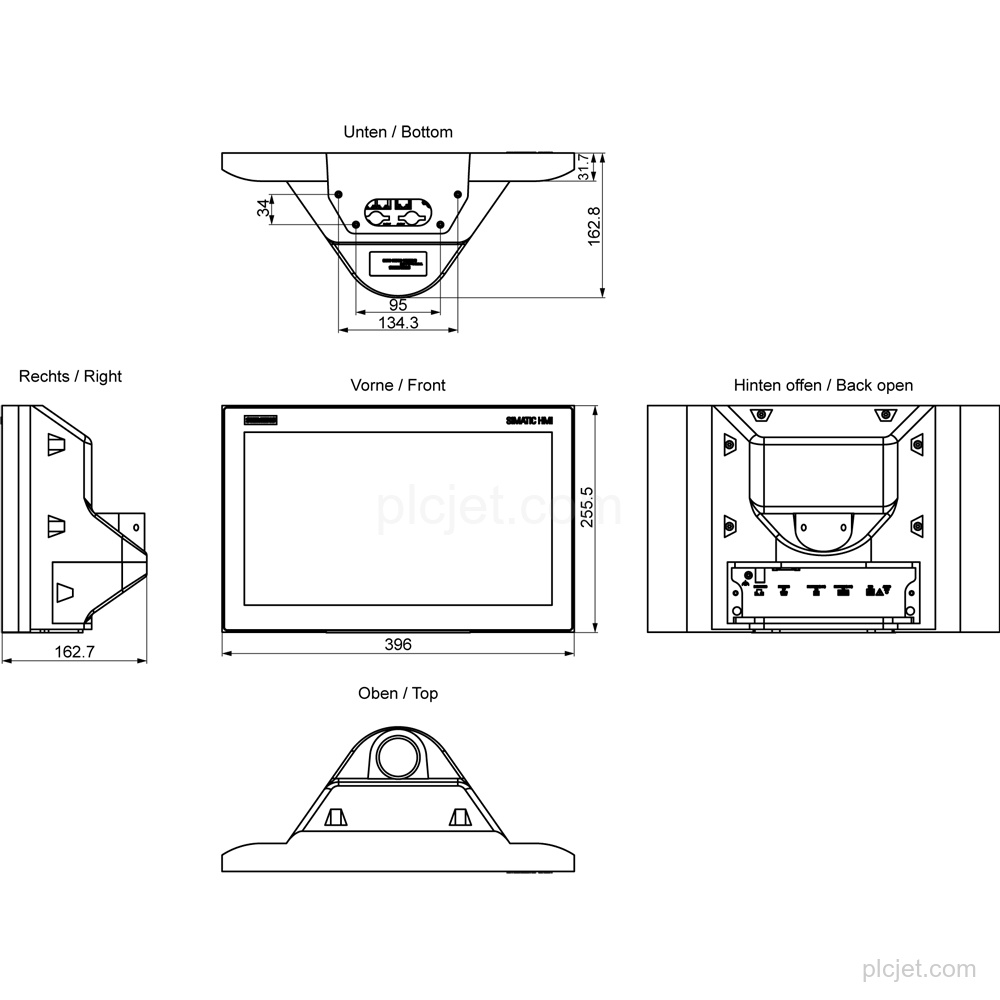

Designed for vertical support-arm mounting; mounting in portrait format is not possible.

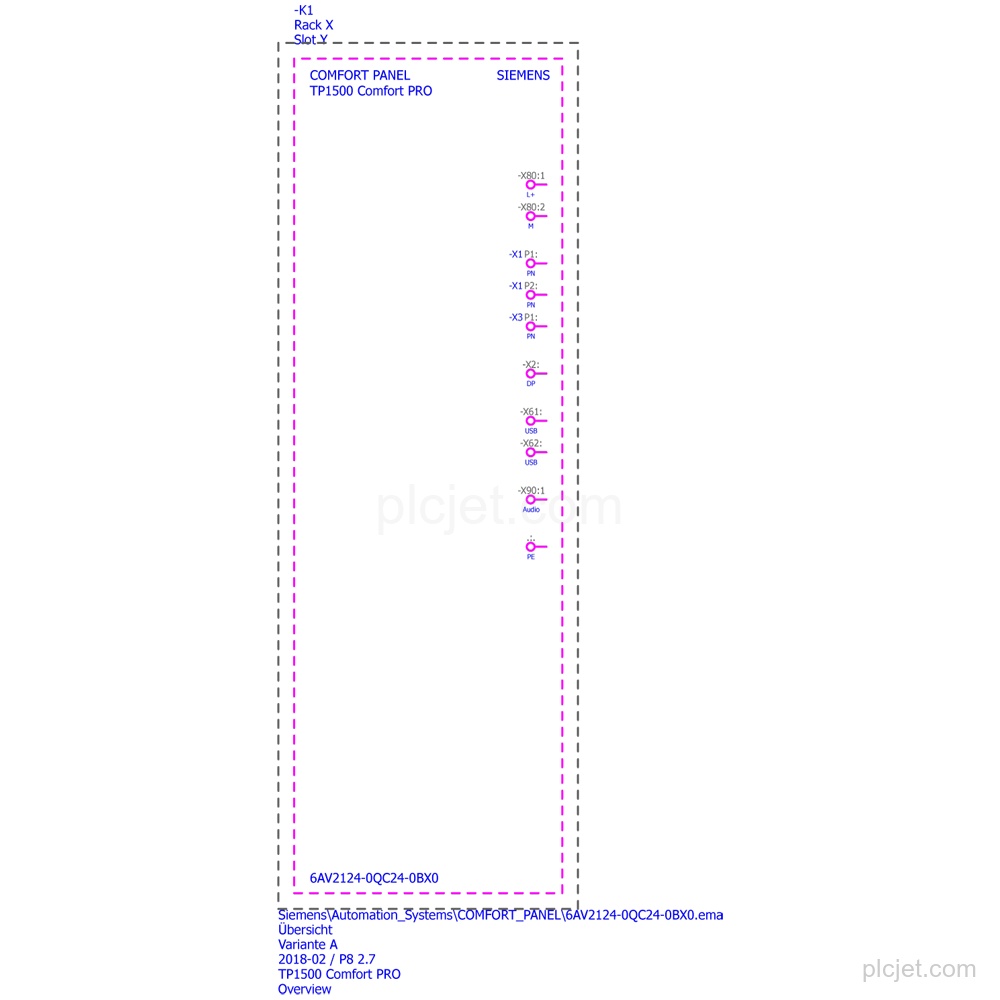

2 industrial Ethernet interfaces with 2 ports on an integrated switch plus an independent port, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots.
PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, Active X, JavaScript, MRP, and MODBUS.
24 V DC rated supply with a permissible range of 19.2 V to 28.8 V, 24 Mbyte available for user data, and 36 W typical active power input.
Announcement of product phase-out.
Frequently Asked Questions
What exact Siemens line item is this?
It is Siemens 6AV2124-0QC24-0BX0, SIMATIC HMI TP1500 Comfort PRO.
What display and touch configuration does it have?
It has a 15.6 in TFT widescreen display with 16 777 216 colors, 1 366 x 768 pixel resolution, and projective-capacitive touch operation.
Which interfaces and protocols are supported?
It has industrial Ethernet, combined RS 422 / 485, USB 2.0, and SD card interfaces, with support for PROFINET, PROFIBUS, EtherNet/IP, MPI, and other listed protocols.
How is this panel mounted and supplied?
Mounting is vertical on a support arm. The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
What project details should accompany a quotation request?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
