Product Overview
Applications
Supports operator control of the process through touch buttons as S7 input I/O.
Technical Summary
| Product type designation | TP1500 Comfort PRO |
|---|---|
| Display | 15.6 in TFT, 16 777 216 colors |
| Resolution | 1 366 pixel × 768 pixel |

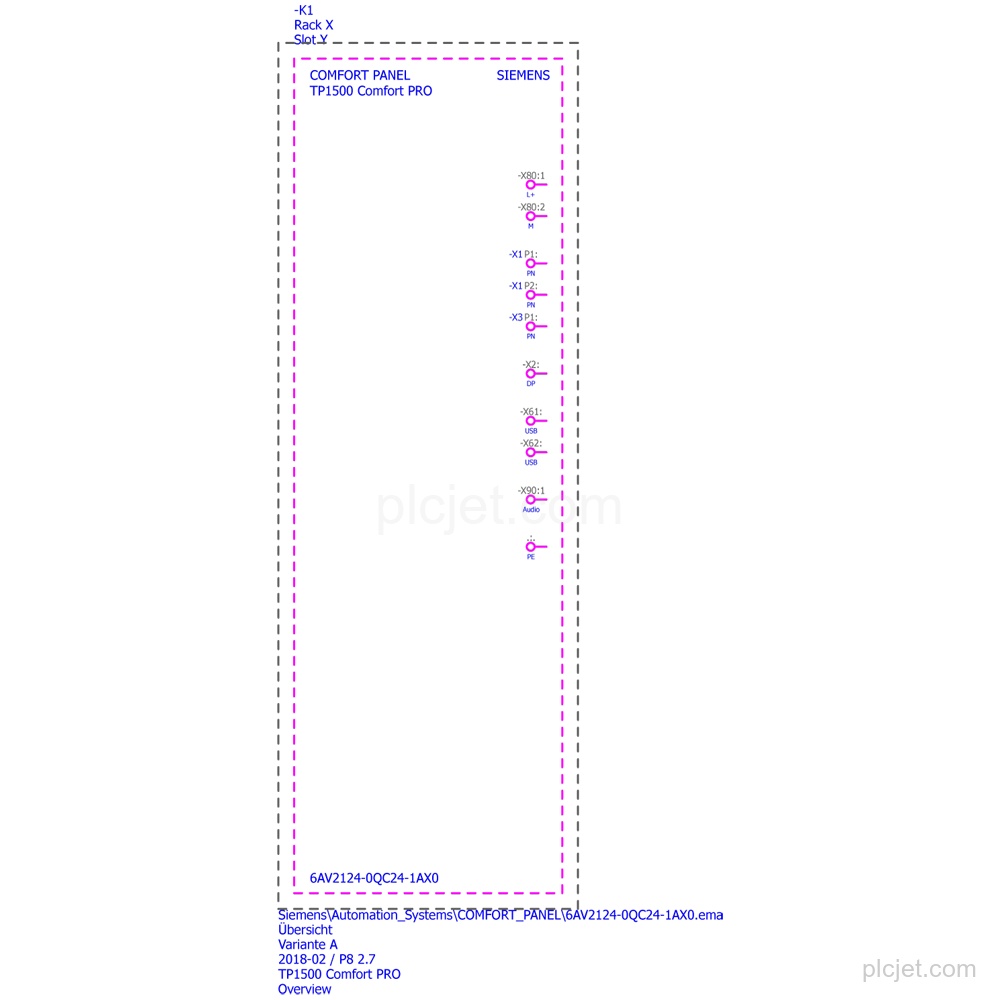

| Interfaces | PROFINET; MPI/PROFIBUS DP; 2 industrial Ethernet ports; 1 RS 422 / 485 combined interface; 2 USB 2.0; 2 SD card slots |
| Configuration memory | 24 MB |
| Supply | 24 V DC; 19.2 V to 28.8 V DC permissible range |

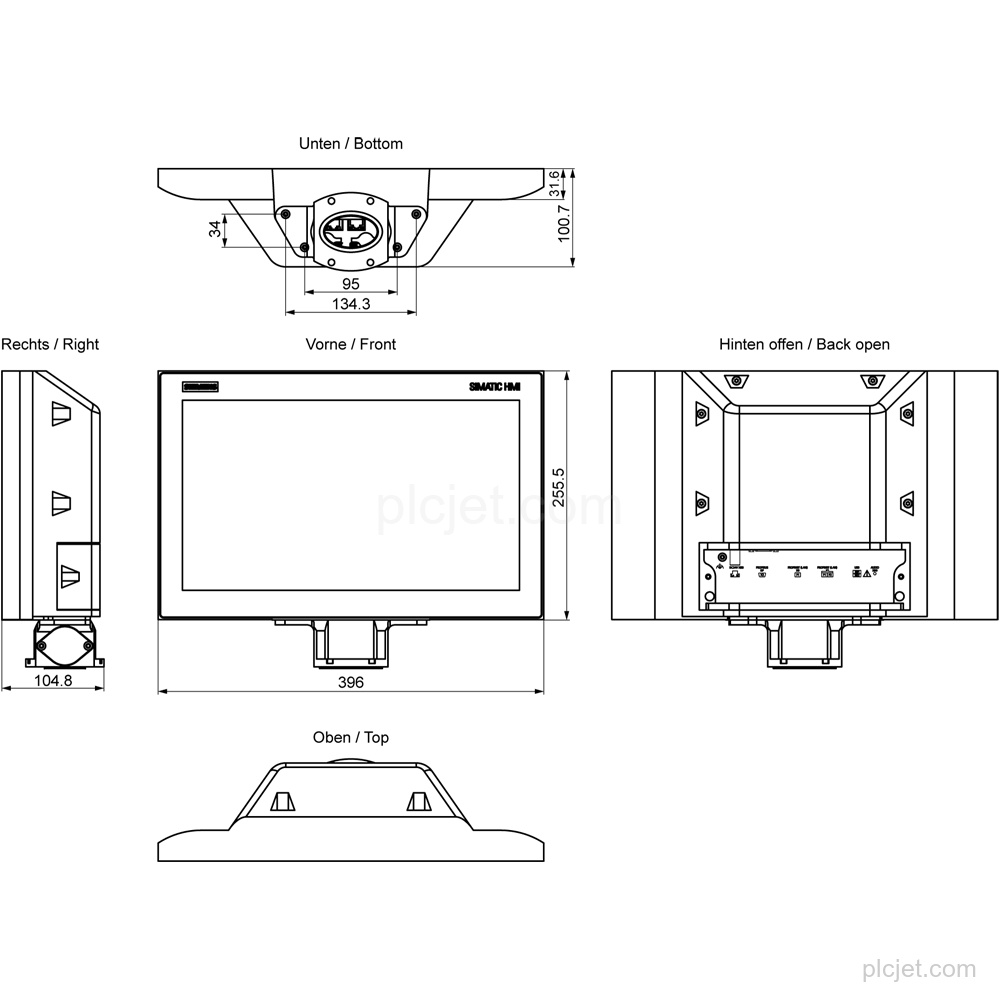

| Mounting | Pedestal, vertical; maximum permissible angle of inclination without external ventilation: 35° |
| Protection | IP65 front and rear; Enclosure Type 4 and Enclosure Type 4x at the front |
| Lifecycle | Announcement of product phase-out |
Key Features

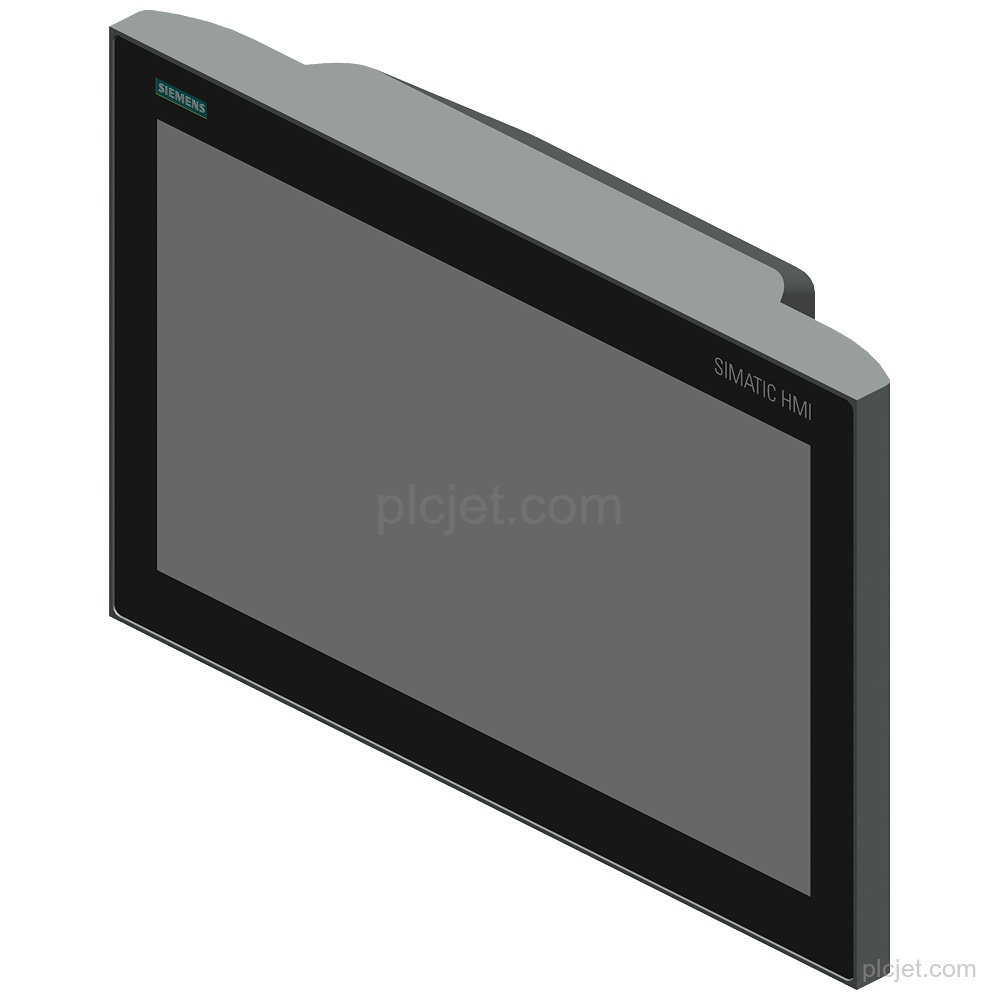

15.6 in TFT widescreen display with 16 777 216 colors and 1 366 pixel × 768 pixel resolution.
PROFINET and MPI/PROFIBUS DP interfaces; 2 industrial Ethernet ports are provided through an integrated switch, plus 1 RS 422 / 485 combined interface.
24 MB configuration memory with WEC 2013 and configuration from WinCC Comfort V14 SP1.
Pedestal mounting in vertical position; portrait-format mounting is not possible.
Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC.
IP65 protection at the front and rear; Enclosure Type 4 and Enclosure Type 4x at the front.
Frequently Asked Questions
What display does the 6AV2124-0QC24-1AX0 have?
It has a 15.6 in TFT widescreen touch display with 16 777 216 colors and 1 366 pixel × 768 pixel resolution.
Which interfaces are provided?
It has PROFINET and MPI/PROFIBUS DP interfaces, 2 industrial Ethernet ports through an integrated switch, 1 RS 422 / 485 combined interface, 2 USB 2.0 interfaces, and 2 SD card slots.
How is this HMI panel mounted and supplied?
It uses pedestal mounting in vertical position and requires 24 V DC. The permissible supply range is 19.2 V to 28.8 V DC.
