Product Overview
Technical Summary
| Product type | KP900 Comfort |
|---|---|
| Display | 9 in widescreen TFT, 16 777 216 colors |
| Resolution | 800 pixel x 480 pixel |
| Function keys | 26; 26 with LEDs |
| Supply | 24 V DC; 19.2 V to 28.8 V permissible range |
| Interfaces | 1 industrial Ethernet with 2 ports; 1 RS 422 / 485; 2 USB 2.0 |
| Configuration memory | 12 MB; Windows CE 6.0 |

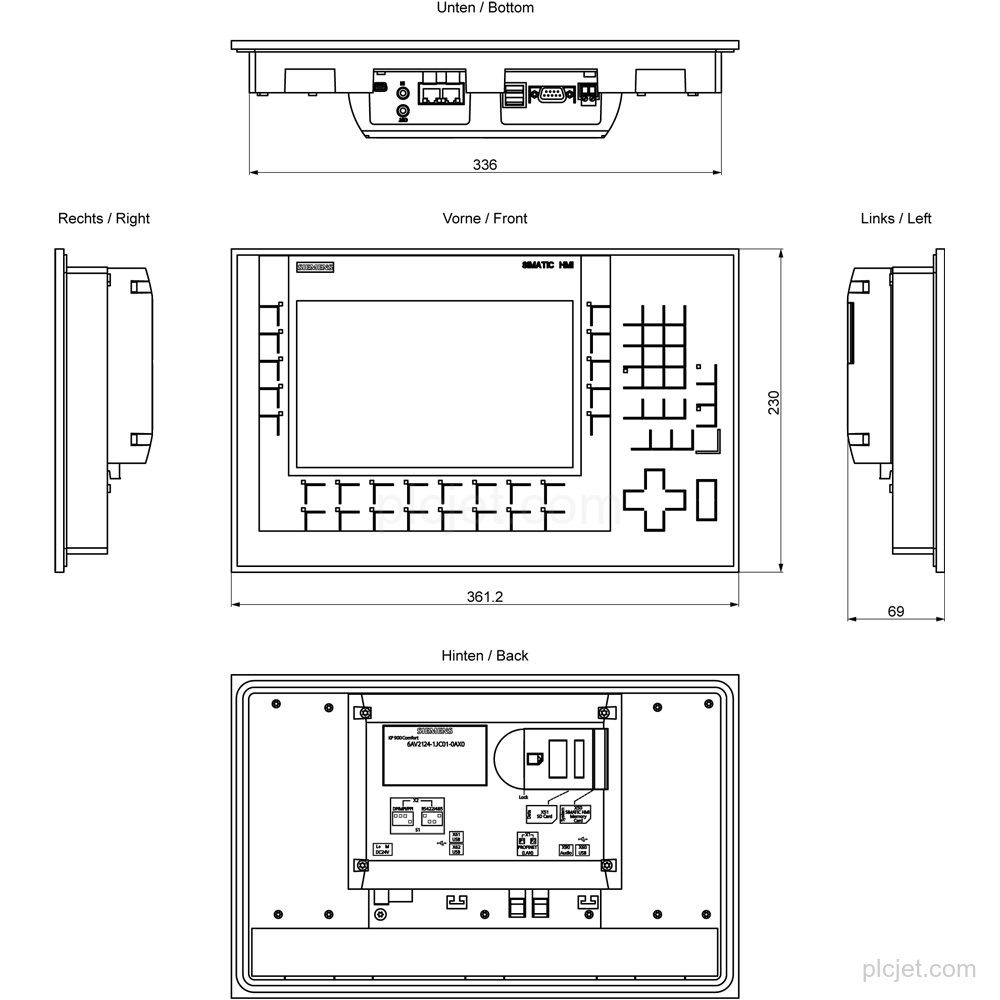

| Mounting and protection | Vertical; landscape format; IP65 front, IP20 rear |
Key Features
9 in widescreen TFT display with 16 777 216 colors, 800 pixel horizontal resolution, 480 pixel vertical resolution, and 26 function keys.
DC supply with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V.
1 industrial Ethernet interface with 2 ports, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots.
Supports PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, and LLDP.
12 MB configuration memory, Windows CE 6.0, and configurable from WinCC Comfort V11.
Vertical mounting, landscape format possible, with IP65 protection at the front and IP20 protection at the rear.
Frequently Asked Questions
What exact HMI line item is this?
It is the Siemens SIMATIC HMI KP900 Comfort, order number 6AV2124-1JC01-0AX0.
What display and key configuration does it have?
It has a 9 in widescreen TFT display with 800 pixel x 480 pixel resolution, 16 777 216 colors, and 26 function keys.

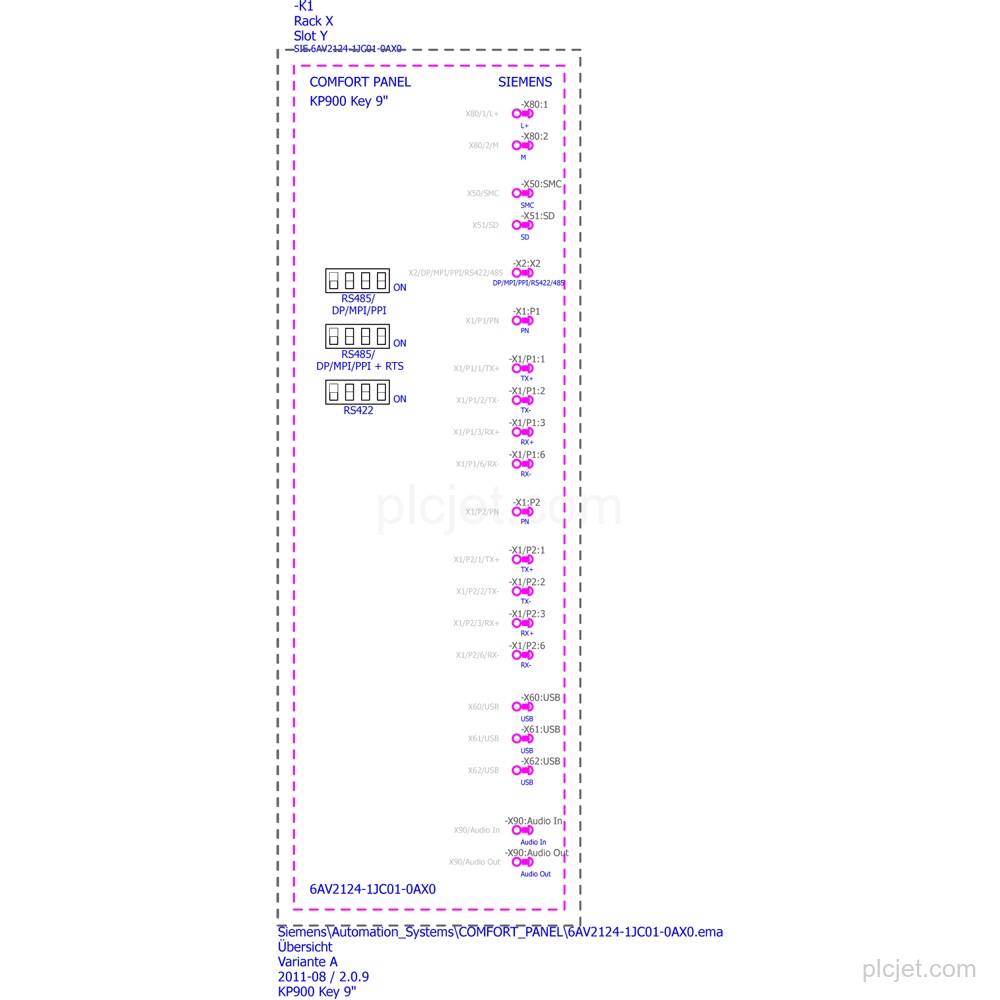

Which interfaces are provided?
It has 1 industrial Ethernet interface with 2 ports, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots.
What project quotation details should be supplied?
Provide the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
