Product Overview
Technical Summary
| Product type | KP1200 Comfort |
|---|---|
| Display | 12.1 in widescreen TFT, 16 777 216 colors |
| Resolution | 1 280 pixel × 800 pixel |
| Operation | Key operation; without touch screen |
| Configuration memory | 12 MB |
| Interfaces | PROFINET; MPI/PROFIBUS DP; USB 2.0; 2 SD card slots |
| Supply | DC, rated value 24 V; permissible range 19.2 V to 28.8 V |

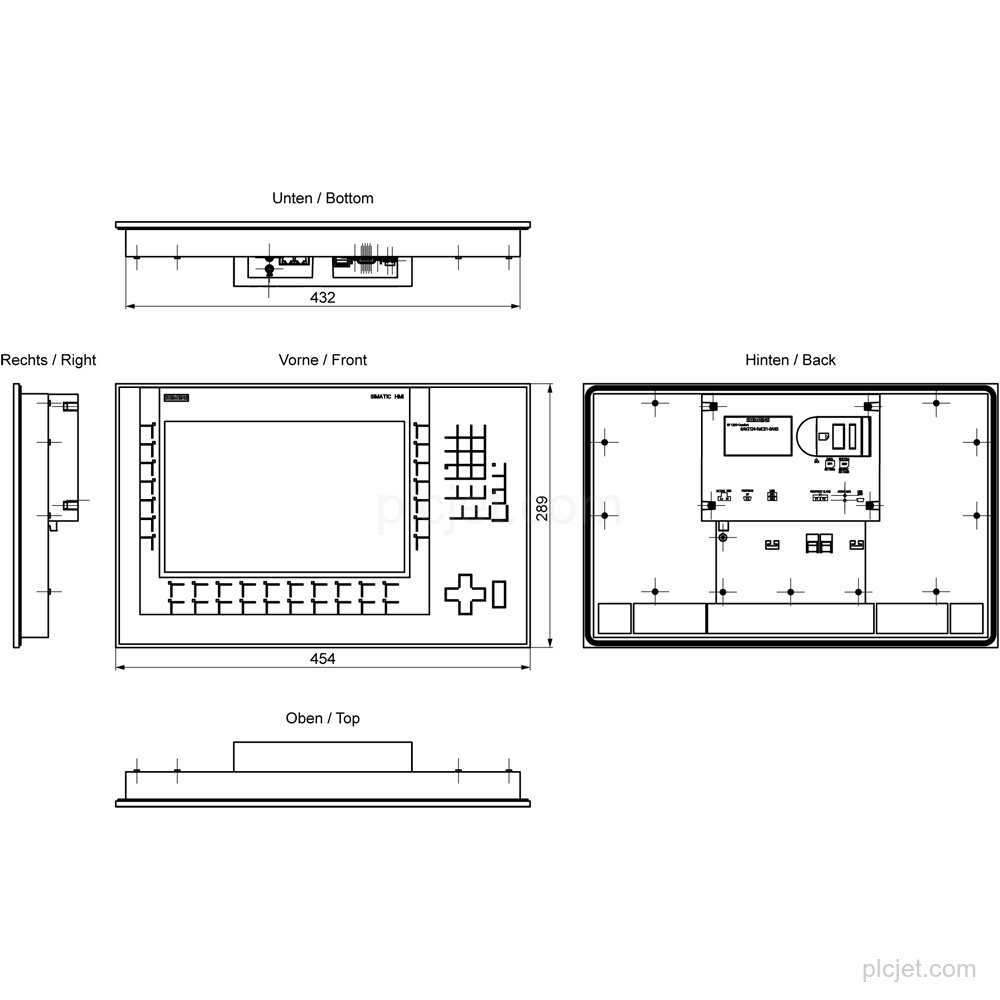

| Mounting | Vertical; landscape format possible |
| Front protection | IP65; NEMA Enclosure Type 4 and Type 4x |
| Rear protection | IP20 |
| Lifecycle | Announcement of product phase-out |
Key Features
12.1 in widescreen TFT display with 1 280 pixel horizontal resolution, 800 pixel vertical resolution, and 16 777 216 colors. It has key operation and no touch screen.
34 function keys, including 34 function keys with LEDs, plus system keys, a numeric keyboard, and an alphanumeric keyboard similar to a mobile phone.
12 MB configuration memory and Windows CE 6.0. Configurable from WinCC Comfort V11.

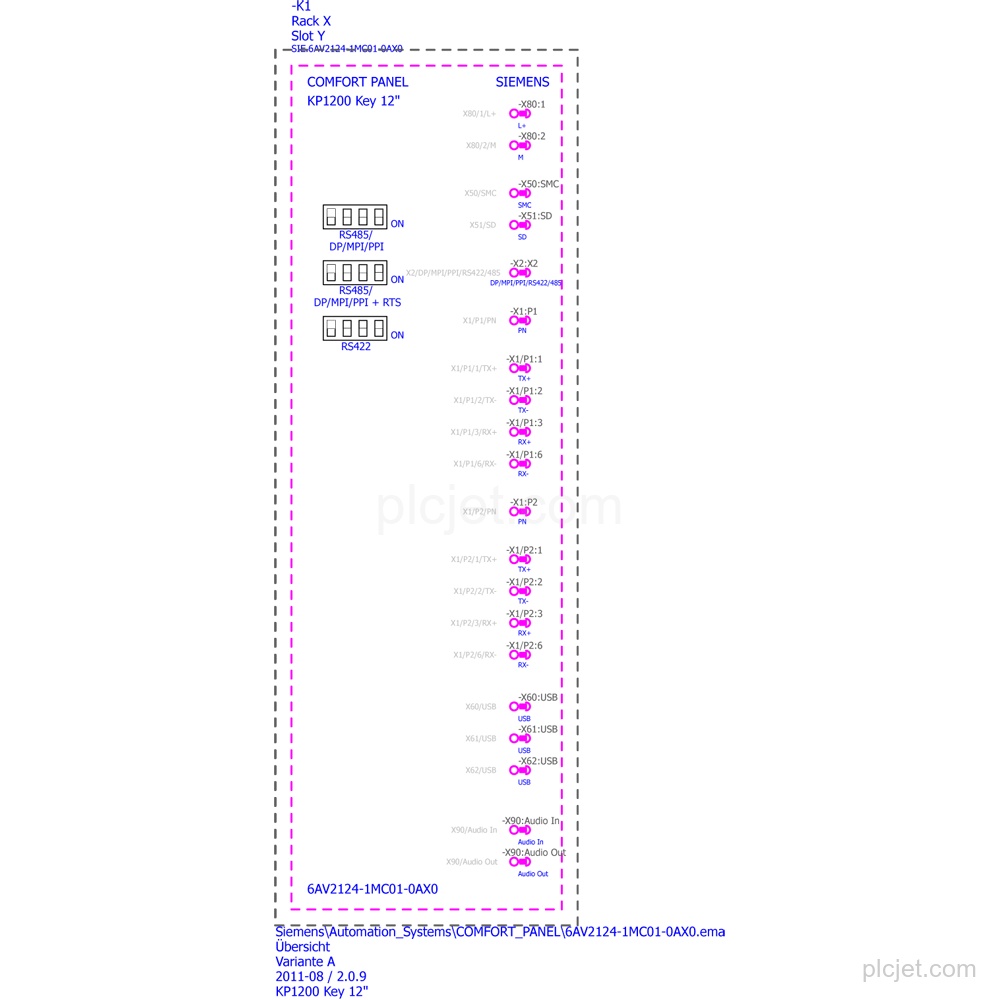

1 industrial Ethernet interface with 2 switch ports, 1 RS 422 / 485 combined interface, 1 RS 422 interface, 2 USB 2.0 interfaces, and 2 SD card slots.
Supports PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, Active X, and JavaScript.
DC supply with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V. Vertical mounting and landscape-format mounting are supported; the maximum permissible angle of inclination without external ventilation is 35°.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6AV2124-1MC01-0AX0, SIMATIC HMI KP1200 Comfort Panel.
Does this panel have a touch screen?
No. It has key operation and is without a touch screen.
Which interfaces are available?
It has PROFINET, MPI/PROFIBUS DP, 1 RS 422 / 485 combined interface, 1 RS 422 interface, 2 USB 2.0 interfaces, and 2 SD card slots.
What supply and mounting details should be retained for the quotation?
Supply is DC, rated value 24 V, with a permissible range of 19.2 V to 28.8 V. Mounting is vertical, landscape format is possible, and the maximum permissible angle of inclination without external ventilation is 35°.
