Product Overview
Technical Summary
| Product type | KP1500 Comfort |
|---|---|
| Display | 15.4 in TFT widescreen, 1 280 pixel × 800 pixel, 16 777 216 colors |
| Operation | 36 function keys; no touch screen |
| Supply | 24 V DC; permissible range from 19.2 V to 28.8 V |
| User-data memory | 24 Mbyte |
| Ethernet interfaces | 2; 2 switch ports plus an independent port |
| Additional interfaces | 1 combined RS 422 / 485 interface; 2 USB 2.0 interfaces; 2 SD card slots |
| Protocols | PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP and LLDP |
| Mounting | Vertical; landscape possible; portrait not possible; maximum angle 35° without external ventilation |
| Protection | IP65 at the front; IP20 at the rear |
| Lifecycle | Announcement of product phase-out |
Key Features
15.4 in widescreen TFT display with 1 280 pixel × 800 pixel resolution, 16 777 216 colors, 36 function keys and no touch screen.
2 industrial Ethernet interfaces with 2 integrated switch ports plus an independent port, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces and 2 SD card slots.
PROFINET, PROFINET IO, IRT with WinCC V14 SP1 HSP or higher, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP and LLDP.
24 V DC rated supply with a permissible range from 19.2 V to 28.8 V; 24 Mbyte memory is available for user data.
Vertical mounting is supported, landscape mounting is possible, portrait mounting is not possible, and the maximum permissible angle of inclination without external ventilation is 35°.
Protection is IP65 at the front and IP20 at the rear; NEMA Enclosure Type 4 and Type 4x are supported at the front.
Frequently Asked Questions
What is the exact product variant?

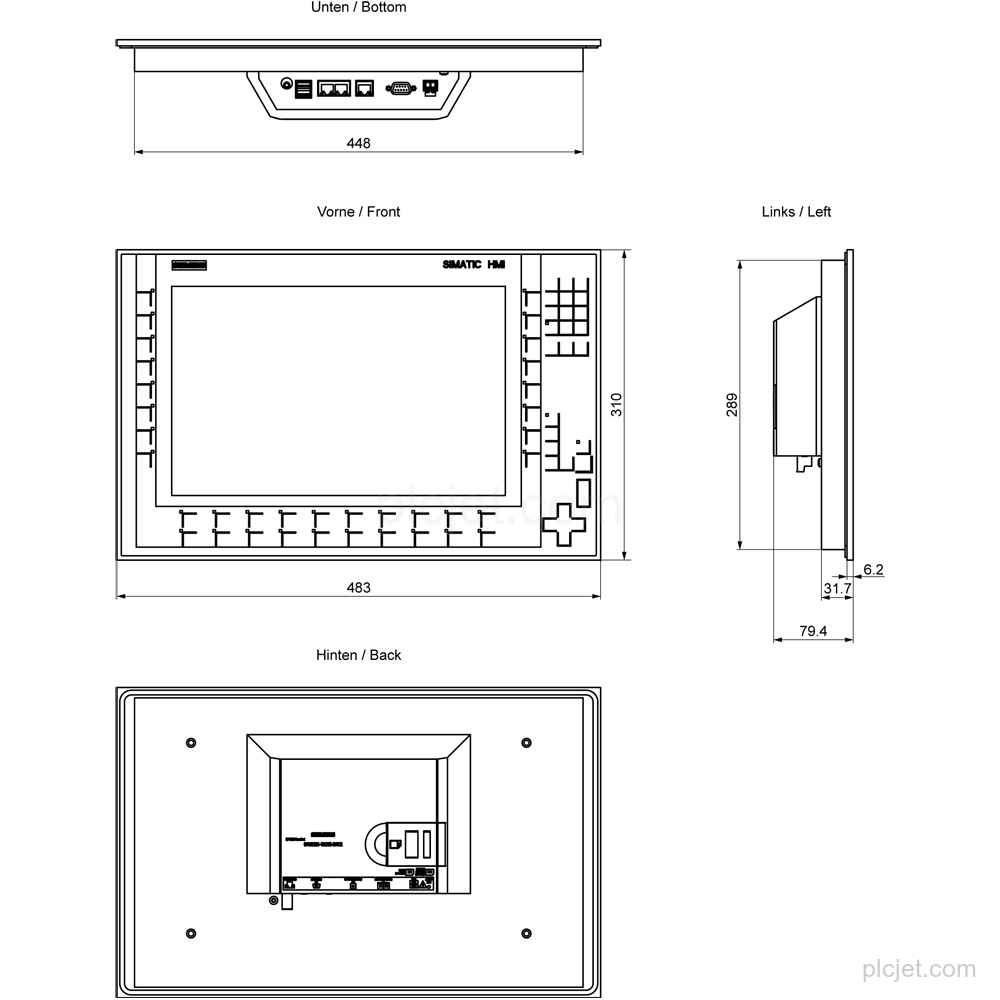

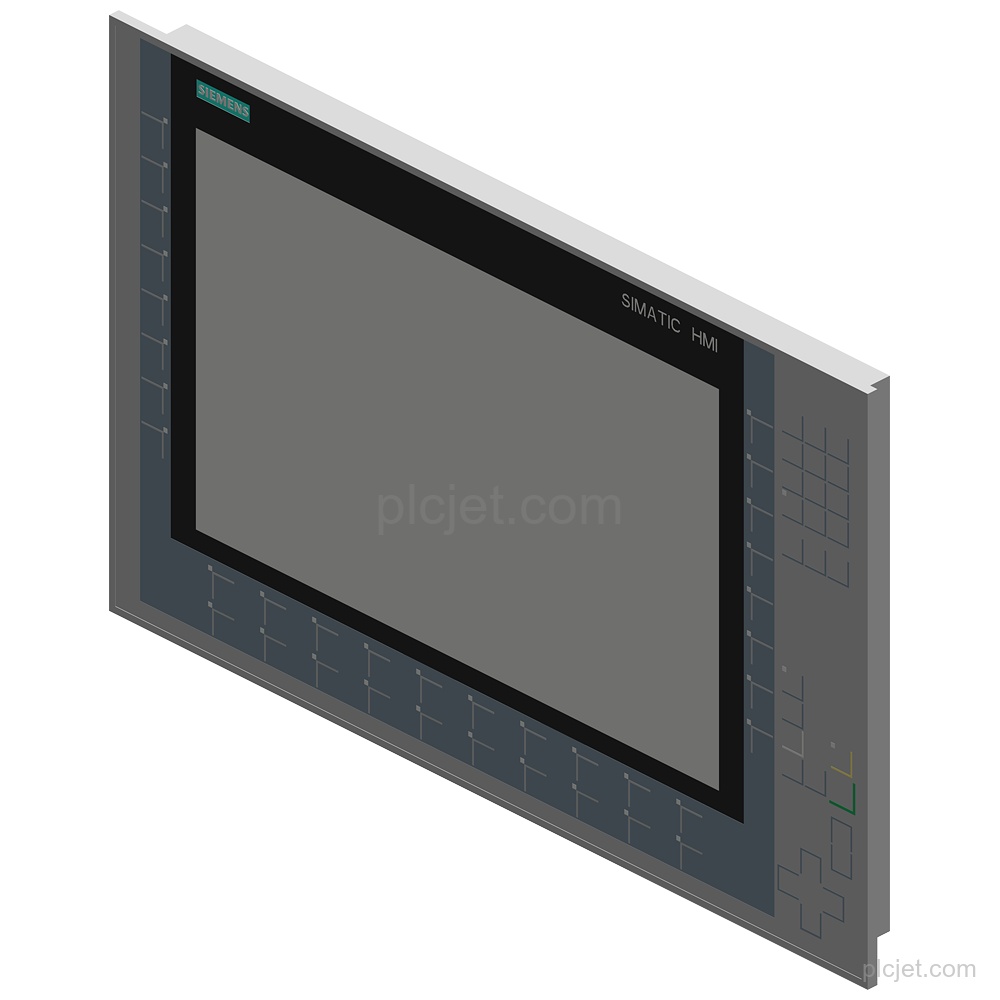

The exact product is Siemens 6AV2124-1QC02-0AX2, product type designation KP1500 Comfort.
Which display and input configuration does it have?
It has a 15.4 in widescreen TFT display with 1 280 pixel × 800 pixel resolution, 16 777 216 colors, 36 function keys and no touch screen.
Which communication interfaces are available?
It has 2 industrial Ethernet interfaces with 2 integrated switch ports plus an independent port, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces and 2 SD card slots.
How is this configuration mounted?
Mounting is vertical. Landscape mounting is possible, portrait mounting is not possible, and the maximum permissible angle of inclination without external ventilation is 35°.
What should be included in a quotation request?
Include the requested quantity, destination, schedule context and any additional BOM lines for this exact configuration.
