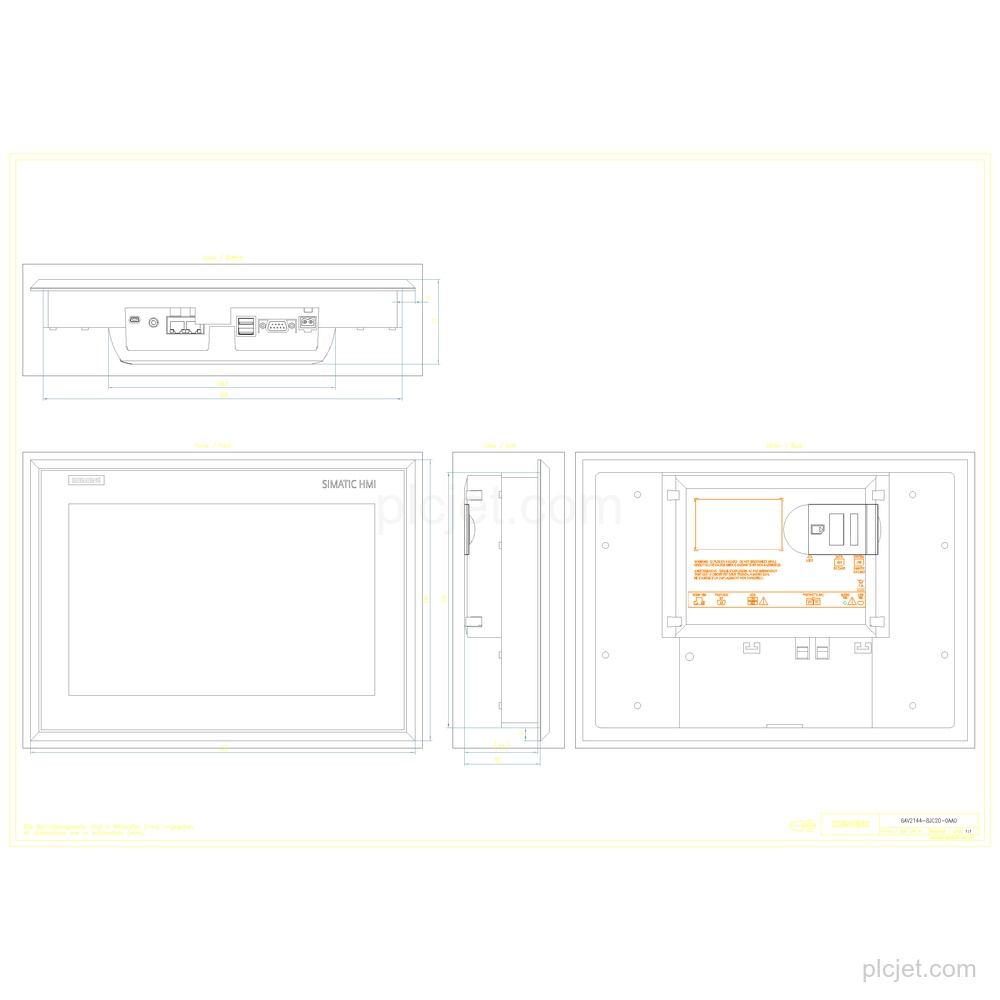

Product Overview
Technical Summary
| Product type designation | TP1200 Comfort INOX PCT |
|---|---|
| Display | 12.1 in widescreen TFT; 1 280 pixel x 800 pixel |
| Touch operation | Capacitive touch |
| Configuration memory | 12 MB |
| Supply voltage | DC, rated value 24 V; permissible range 19.2 V to 28.8 V |
| Industrial Ethernet | 1 interface; 2 ports (switch) |
| Interfaces | 1 RS 422 / 485 combined; 2 USB 2.0; 2 SD card slots |
| Protocols | PROFINET, PROFIBUS, EtherNet/IP and MPI |
| Mounting | Vertical; portrait and landscape formats possible |
| Protection | Front IP66 / IPx6K and IP69 / IPx9K; rear IP20 |
| Lifecycle | Announcement of product phase-out |
Key Features
12.1 in widescreen TFT display with 1 280 pixel horizontal resolution, 800 pixel vertical resolution and capacitive touch.
1 industrial Ethernet interface with 2 ports, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, 2 SD card slots, PROFINET, PROFIBUS, EtherNet/IP and MPI.
DC supply with rated value 24 V and permissible range 19.2 V to 28.8 V; typical active power input is 20 W.
12 MB configuration memory; configurable from WinCC Comfort V15. Windows CE 6.0 is supplied, with Microsoft Support included and security updates discontinued.
Vertical mounting; portrait and landscape mounting are possible. Maximum permissible angle of inclination without external ventilation is 35°. Front protection is IP66 / IPx6K and IP69 / IPx9K; rear protection is IP20.
Announcement of product phase-out.
Frequently Asked Questions
What exact product variant is 6AV2144-8MC20-0AA0?
It is the SIMATIC HMI TP1200 Comfort INOX PCT with a stainless steel front, glass pane and capacitive touch.
Which display and memory does this HMI have?
It has a 12.1 in widescreen TFT display with 1 280 pixel x 800 pixel resolution and 12 MB configuration memory.
Which interfaces and protocols are supported?
It has 1 industrial Ethernet interface with 2 ports, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces and 2 SD card slots. Supported protocols include PROFINET, PROFIBUS, EtherNet/IP and MPI.
What supply voltage is required?
The DC rated supply value is 24 V, with a permissible range of 19.2 V to 28.8 V.
